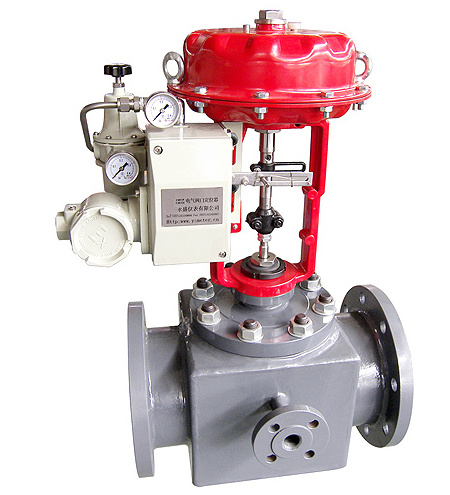

Intelligent Jacketed Insulation Control Valve-Pneumatic Diaphragm Jacketed Control Valve

Intelligent Jacketed Insulation Control Valve-Pneumatic Diaphragm Jacketed Control Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Pneumatic diaphragm jacketed control valve

Engineered valve solutions, ball and butterfly valves, actuators, high pressure chokes, valve positioners, sensors, regulators, free control valve sizing.


IQ(D)10J Series of Intelligent Jacketed Insulation Control Valve mainly applied to the occasions of thermal insulation, full the heat medium into the gap between valve body and metal jacket to keep thermal insulation and prevent fluid crystallization occurs, as well as the increase of viscosity, which due to the temperature reduction.
ZM10 series muti-springs pneumatic reinforce actuator, makes the valve realize the conversion of normal close and normal open on site easily, the spring can be effectively protected from the corrosion to prolong the service life of actuator and convenient for customers operation. The actuator and the intelligent valve positioner are connected pipeless to strengthen the antisemitic performance, stability and precision adjustment, to meet to exactly control of the working conditions.


Control valves are valves used to control conditions such as flow, pressure, temperature, and liquid level by fully or partially opening or closing in response to signals received from controllers that compare a "setpoint" to a "process variable" whose value is provided by sensors that monitor changes in such conditions. The opening or closing of control valves is usually done automatically by electrical, hydraulic or pneumatic actuators. Positioners are used to control the opening or closing of the actuator based on electric, or pneumatic signals. These control signals, traditionally based on 3-15psi (0.2-1.0bar), more common now are 4-20mA signals for industry, 0-10V for HVAC systems, and the introduction of "Smart" systems, HART, Fieldbus Foundation, and Profibus being the more common protocols.

A control valve consists of three main parts in which each part exist in several types and designs:? Valve's actuator? Valve's positioner? Valve's body

Pneumatic control valve, Self-operated control valve, electric control valve, Single seat control valve, flow control valve, three way control Valve
Nominal Diameter DN15~250
Nominal Pressure PN1.6~6.4MPa ANSI 150~300lb
Density Temperature -20~595ºC
Connection Type Flange
Bonnet Type STD,High temperature type,Bellow sealing type
Body Material WCB\CF8\CF8M\CF3M
Valve Trim Material 304\304+Stellite\316L\316L+Stellite
Flow Characteristic EQ%, Linear
Leakage Hard Sealing ANSI Class IV\V
Thermal Insulating Medium Vapor press≤1.0MPa   Temperature≤350ºC  Steam pipe≤DN25
Prod Model: IQ(D)10J
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accessory 1: Muti-Springs Pneumatic Reinforce Actuator
Accessory 2: Positioner
Accessory 3: Solenoid Valve
Accessory 4: Air Set
Accessory 5: Limit Switch
Accessory 6: Lock up Valve
Accessory 7: Manual Handle
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.

Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.

Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.

Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.

Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
