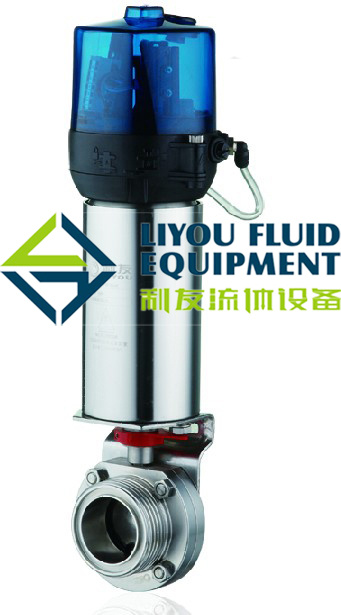

Intelligent Pheumatic Butterfly Valve
Material: Stainless steel 304, 316L
Port size: 1/2"-6", DN15-DN150
Standard: DIN, INCH, SMS
LIYOU model: 110009
Connection: Welding\thread\clamp\flange
Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry.
We can supply a wide range of butterfly valves, check valves, ball valves,
Sample valves, stop reversing valves, forged steel valves and fittings, any items you are interested in. Pls do not hesitate to contact me
Material |
Contact product parts |
304L\316L forged |
non-contact product parts |
304 |
|
Seal material |
standard |
EPDM
All seal material meet FDA 177.2600 |
option |
NBR/FPM/Silicone
All seal material meet FDA 177.2600 |
Temperature |
Running working temperature |
-20~+135° C (EPDM) |
Sterilization temperature |
150° C (max 20min) |
Pressure |
Working pressure |
0~10bar (standard) |
Accepting high pressure requirement |
Control air pressure |
5~8bar |
Surface treatment |
Internal surface |
Ra ≤ 0.8μ m |
External surface |
Ra≤ 1.6μ m |
Connection |
Connection standard |
welded end: DIN 11850 series2 |
welded end: INCH pipe standard |
Connection method; welding, thread, clamp, flange |
Option |
Intelligent controller |
24V DC |
1/2 electromagnetism valve |
Position sensor |
24V DC |
2 NPN/PNP position sensor |
Our corporation is specialized in the R&D, production and distribution of precise casting stainless steel valves, sanitary valves, fluid pipe fittings and sanitary pumps etc. Products. The products are designed in accordance with API, DIN, BS and GB etc. Standards. "Liyou" products are widely applied in such industries as petroleum, chemical industry, metallurgy, plumbing, pharmacy, beer, drink, dairy products and edible oil etc.
