Internal and External Thread Needle Valve-Needle Valve-Hydraulic Valve
| Price: |
US $ 7-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

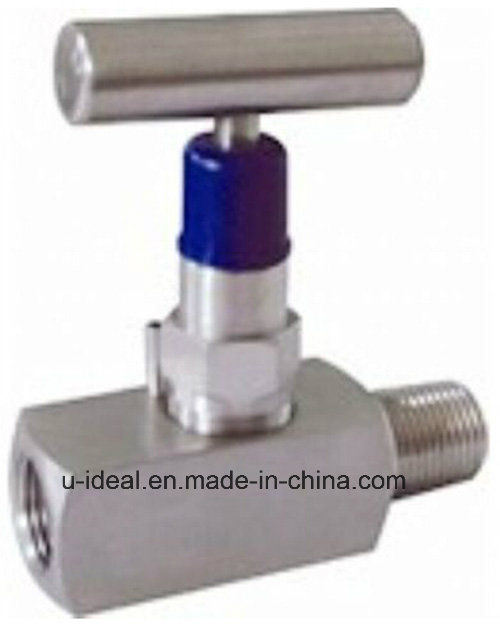

Internal And External Thread Needle Valve
Performance and specification
Design and manufacture: ANSI B16.34-1996, connection mode: NPT(M,F) internal and external thread connection, Structural characteristic: taper thread sealing, test and inspection: API STD 598-1996.
The materials of main parts
No. | Part name | Material |
| 1 | Body | 20# A105 SS304 SS304L SS316 SS316L |
| 2 | Bonnet gasket | (Red copper) PTFE |
| 3 | Bonnet | 20# A105 SS304 SS304L SS316 SS316L |
| 4 | Packing seat | PTFE (flexible graphite) (Matel packing) |
| 5 | Packing | PTFE (flexible graphite) |
| 6 | Packing gland | 20# A105 SS304 SS304L SS316 SS316L |
| 7 | Stem | 20# A105 SS304 SS304L SS316 SS316L |
| 8 | Handle | 20# A105 SS304 SS304L SS316 SS316L |
| 9 | Hexagon Screw | 20# A105 SS304 SS304L SS316 SS316L |
Test standard
test item | pressure value |
| nominal pressure | 6000PSI |
| shell test | 6000PSI |
| sealing test | 6000PSI |
| Gas Pressure Test | 24 |
| Suitable Temperature | ≤250ºC |
| applicable medium | Water,Steam,Oil, etc |
External and connection dimensions
ITEM No. | Nominal diameter | Td | H | L | L1 | N |
| J11W-1 | DN6 | NPT1/4 | 75 | 58 | 75 | 60 |
| J11W-2 | NPT1/2 | 80 | 62 | 66 | 60 |
| J11W-3 | NPT3/4 | 80 | 57 | - | 60 |
| J11W-4 | DN10 | NPT3/8 | 75 | 58 | 78 | 60 |
| J11W-5 | DN15 | NPT1/2 | 77 | 68 | 86 | 60 |
| Prod Model: |
J11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
High Pressure |
| Power: |
Manual |
| Standard: |
Nonstandard |
| Material: |
Stainless Steel |
| Media: |
Oil |
| Media Temperature: |
High Temperature |
