Nominal Pressure: PN2.5 PN4 PN6.4 PN16 PN32Mpa
Nominal Bore: DN5~DN25
Applicable medium: Oil, water, gas etc the non-corrosive or corrosive medium
Applicable Temperature: -20~+440, -70~-240; 540 ≤ 570≤ Degree
Materials: 20#1Cr18Ni9Ti304316316L12Cr1MOV
Connection type: The welding connection mode, can be more effective keep pipeline firm, is not leaking

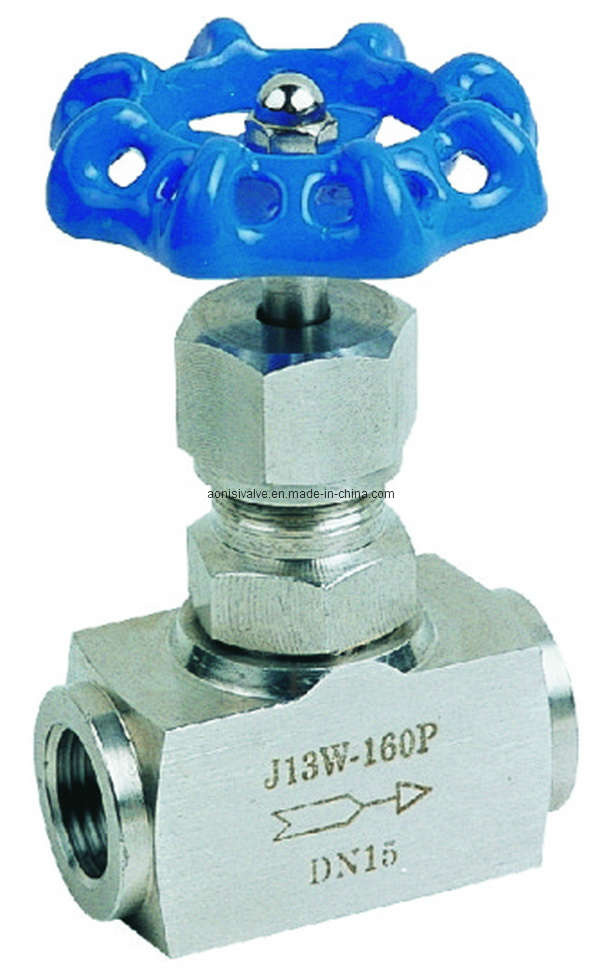

Male thread Needle Valve
Stainless steel needle valve is important part of instrument measuring pipeline system, mainly including globe valve and ball valve, its function is to make open or shut off pipeline with access.
Stainless steel needle valve sealing is good, long service life, even after sealing surface damage, also just only needs to replace wear parts, can continue to use.
When installation should make the medium flow direction is same direction of arrow on valve body.
|
Nominal diameter(mm) |
Size |
|
|
|
Do |
L |
H |
Hi |
d |
|
|
6 |
1/4 |
60 |
55 |
92 |
102 |
4 |
|
|
10 |
3/8 |
60 |
60 |
90 |
100 |
5 |
|
|
15 |
1/2 |
65 |
65 |
97 |
107 |
6 |
|
|
20 |
3/4 |
80 |
80 |
109 |
121 |
8 |
|
25
|
1
|
100 |
90 |
122 |
132 |
10 |
|
