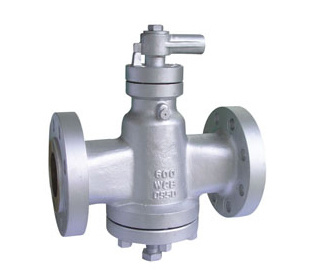

Inverted Pressure Balance Lubricated Plug Valve (X43F-600)

Inverted Pressure Balance Lubricated Plug Valve (X43F-600)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Name: Inverted Pressure Balance Lubricated Plug Valve
Place of Origin: China

Features:
1) Design and manufacture standards: ANSI B16.34, API 6D, API 599, API 6A
2) Face to face: ANSI B16.10, API 6A
3) End flange: ANSI B16.5, ANSI B16.25, API 6A
4) Material: Carbon steel, stainless steel
5) Inspection standard: API 598
6) Body: WCB / WC6 / WC9 / CF8 / CF8M / CF3 / CF3M / MONEL / CN7M
7) Size: 1"-24"
8) Class: 150lbs - 600lbs
9) Custom requirements welcomed

Packing: Plywood case for sea transportation

We can supply a wide range of butterfly valves, gate valves, globe valves, check valves, ball valves, relief valves, plug valves, Strainers, hydraulic control valves, and pressure reducing valves.
NO. Part name Material
A216 WCB A351 CF8 A351 CF8M A351 CF3 A351 CF3M
1~2 Body/Nut A193 B7/A194 2H A193 B8/A194 8 A193 B8M A194 8M
3 Cover A216 WCB A351 CF8 A351 CF8M
4 Gasket Flexible graphite+stainless steel/PTFE
5 Plug A182 F304 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
6 Body A216 WCB A351 CF8 A341 CF8M A182 F304L A351 CF3M
7 stem A182 F410 A182 F304 A182 F316 A182 F304L A351 CF3M
8 " O" ring NBR/FEP/SBR
9 Packing Flexible graphite/PTFE
10 Gland A216 WCB A351 CF8 A351 CF8M
11~12 Oichozzle/ check valve Material see body
13 Wrench ASTM A47-32510 A216 WCB

Dimensions(mm) and Weights(Kg)
Class 150Lb
Size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF mm 108 117 127 140 165 178 190 203 229 254 267 292 330 356 381
H mm 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W mm 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight Kg 10 12 14 17 19 21 29 33 48 75 98 125 171 230 370

Class 300Lb
Size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF, BW mm 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
H mm 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W mm 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight Kg 12 14 16 19 21 24 31 36 61 86 130 190 225 380 560

Class 600Lb
Size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF, BW mm 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H mm 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W mm 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight Kg 14 16 18 20 24 29 35 47 91 129 210 320 660 920 1250

Class 900Lb
Size inch 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 5 6 8 10 12 14
L-RF, BW mm 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H mm 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W mm 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight Kg 17 19 21 24 30 37 44 65 110 160 255 380 810 1050 1460

Prod Model: X43F-600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
As an important manufacturer and exporter in China, SIEMPU has been specializing in supplying high-quality industrial valves, including gate valve, globe valve, check valve, ball valve, butterfly valves, casting steel valve, and forging steel valves. Our products have been exported to more than 20 countries all over the world, including America, Europe, Asia, Middle East, Japan, etc., and have gained a good reputation in these markets.

SIEMPU has strong production capability and QC to ensure you receive satisfactory goods. With 3 holding valve factories, manufacturing cast steel valves, stainless steel valves and forging steel valves separately, and more than 15 joint-venture factories producing other different valves, like knife gate valves, safety relief valves, water control valves etc., we are able to source reliable products for our clients in time and at a competitive price. We also conduct strict quality assurance testing through factory evaluation, lab testing, on-site production monitoring, and multiple inspection. We guarantee your satisfaction from A to Z.

Why Choose SIEMPU?

"Good Quality, Competitive Price, Excellent Service and Support, " are three distinct advantages of SIEMPU.

We have always put Quality Control on the list of priorities, since SIEMPU was established. We implement a strict QC system in the factories to maintain high quality of the products in accordance with internationally recognized ISO9001 regulations. All valves are inspected and tested according to API598 standard and carry CE, API approvals. Professional inspectors are also employed to test the products at each stage of the production process and the final packing of the products.

With 3 holding valve factories, manufacturing cast steel valves, stainless steel valves and forging steel valves separately, and more than 15 joint-venture factories producing other different valves, like knife gate valves, safety relief valves, water control valves etc., we are able to source reliable products for our clients in time and at a competitive price.

Moreover, excellent service and support help us win great popularity among customers. We supply a coordinated-process service from product sourcing, quality control, shipping to order follow up to make full satisfaction of our clients. We are also honored to provide OEM service for our clients all over the world.

You are sincerely welcome to contact us for any inquiries or questions. We are looking forward to establish a friendly and sustainable cooperative relationship with worldwide customers.
