We are Rongli Petroleum Machinery Co., Ltd in China. The relief valve of our company is qualified and cost-effective. Welcome you for inquiry at any time.

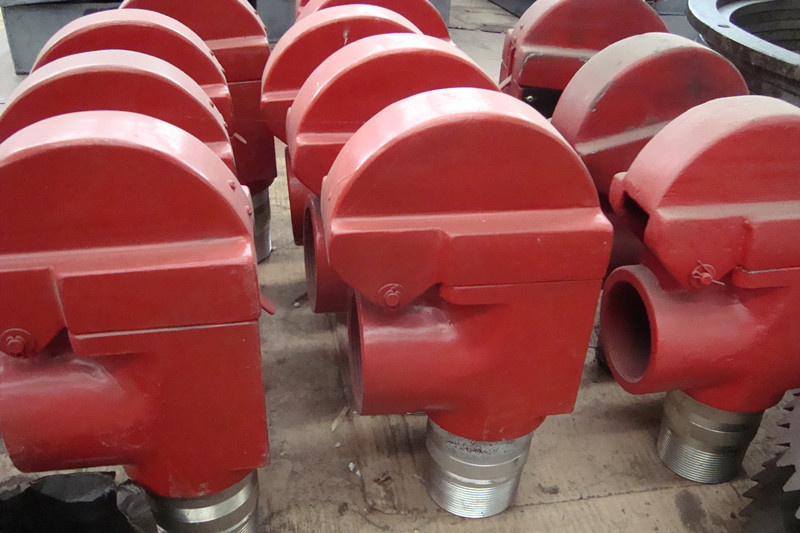

Introduction of mud pump JA-3 shear pin relief valve
1. Style: JA-3 cut off relief valve.
2. Make sure mud pump not to exceed the rate working pressure.
3. We are professional manufacturer of all kinds of oil drilling machinery, we can supply you the best product with your least cost.
Features:
1. Opening and closing simply
2. Piston's bearing pressure area is small
3. To reposition simplely
4. Relief valve may use for multifold mud pumps.
|
Technical Specification of F-1000 Mud Pump |
|
Technical Specification of F-1000 Mud Pump |
|
Rated Stroke |
140 |
Lubrication |
Forced & Splashing |
|
Stroke Length |
254/10" |
Valve Cavity |
API-6# |
|
Inlet Connection |
12"(305mm) |
Outlet Connection Size |
51/8" Flange 5000PSI |
|
Weight(Kg/Pound) |
18790/41425 |
Overall Dimension (L × W × H) |
4267 × 3167 × 2580mm |
|
SPM |
Rated Power |
Liner Dia.(in)and Pressure Rating (Mpa/psi) |
|
6-3/4 |
6-1/2 |
6-1/4 |
6 |
5-1/2 |
5 |
4-1/2 |
4 |
|
HP |
KW |
16.35(2370) |
17.63(2555) |
19.07(2765) |
20.69(3000) |
24.62(3570) |
29.79(4320) |
35(5075) |
35(5075) |
|
Displacement(L/S)/(gpm) |
|
140 |
1000 |
746 |
40.15(651) |
38.06(603) |
35.19(558) |
32.43(514) |
27.25(432) |
22.52(357) |
18.24(289) |
14.41(228) |
|
130 |
929 |
692 |
38.12(604.2) |
35.35(560) |
32.68(518) |
30.12(477) |
25.31(401) |
20.91(331) |
16.94(269) |
13.39(212) |
|
120 |
857 |
639 |
35.18(558) |
32.63(517) |
30.16(478) |
27.80(441) |
23.36(370) |
19.31(306) |
15.64(248) |
12.36(196) |
|
110 |
786 |
586 |
32.25(511) |
29.91(474) |
27.65(438) |
25.48(404) |
21.41(339) |
17.70(281) |
14.33(227) |
11.33(180) |
|
100 |
714 |
533 |
29.32(465) |
27.19(431) |
25.14(398) |
23.17(367) |
19.47(309) |
16.09(255) |
13.03(207) |
10.30(163) |
