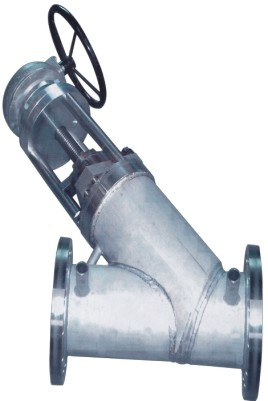

Jacketed Y type stop valve,Melt Stop Valve,Stainless Steel Valve
Advantages:
(1). Jacketed Y type stop valve is used to cut off process fluid.they can replace ball valves and plug valves in high temperature.high pressure(or vacuum)polyester process system that requires straight-flow channel and strict shutoff control.
(2). When the valve is shut off, the feeding mouth of plunger matches up with the internal wall of pipeline and provides no disturbance to the meld flow inside the pipeline.
(3). Exquisite workmanship
(4). Widely applicable
Rematks: Special size, material, directing of the medium according to customers requirement
Operation: Manual, Electric
Inspection and Test: API STD 598
Design STD: ANSI B 16.34
Catheter Material: 304,316
Core Material: 304,316,304L,316L
Catheter Suitable Medium: HTM
Inside Tube Suitable Medium: Lipid, Polymer, Fusion
Suitable Design Temp.: 330
Core Design Temp.: ≤360
Valve Size: DN50~DN400 (2~16)
Jacket Class: 0.6~2.5 Mpa 150LB
Core Class: 0.6~42 Mpa 125LB~2500LB
No dead angle; Apply to the state of high-pressure and Vaccum; Actuating; Electric, Worm gear
Design of the Flow channel : straight line designs
Connection type of fuse pipe: Flange coupling/ Butt welding
Connection type of heat medium: Flanges/ Butt welding
Hard seal of valve stem : valve stem and valve body welded with carbide alloy to ensure the abrasion resistance of the sealed surface
7 steps to ensure the quality
1.Professional fluid analysis provides proof for the selection of diferrent types for customers.
2.Precise finite element analysis provides guarantee for prodcut quality.
3.Thermal state pressure test proved to be stable and safe for clents to use under work conditions.
4.Vacuum test guarantees the reliability of valves that requires special processing.
5.Advanced testing equipment makes sure that various parameters of valves meet the design needs.
6.Advanced ultra-sound defect detector makes sure that each welding line can achieve comppelte defect detection .
7.Advanced Physicochemical analysis machine makes sure that the quality of every part meets the design needs.
Wenzhou Yufeng Chemical Fiber Machinery Co., Ltd. is engaged in the design, manufacture and sale of melt filter, solution filter, filter element, melt valve (three-way valve, sampling valve, cut-off valve and multi-way valve), and prilling unit that is used for chemical fiber production. Our company is located in Wenzhou Industrial Park, Zhejiang. Which has convenient transportation to the Ningbo port. And we already started a representative office in Xiaoshan Hangzhou. Which is half an hour from the Hangzhou Airport to our office.
Our company has sufficient production capability and senior engineers, technicians and managerial staff. We emphasize on the standardized management and constitute our own cooperating culture on the basis of "Precision, Practice, Innovation and People-Focused". In order to provide the best product and service, we use advanced testing and production equipment and proficient techniques to make continual improvement and innovation.
Our company believes in the quality policy of "Quality is Soul and customer is our God". With prime quality, technology, and service, we would like to present our product quality and credibility to our esteemed custmers. We will carry on the "Innovation and Development" Spirit, make constant progresses, and seek cooperation opportunities.
We have our own R&D department. Products can be customized and Engineers available to service machinery overseas. We are making sure
Our customers have no worries about our products!
Should your products require testing and certification to comply with international standards (EN, DIN, ANSI, ASME, etc...), we can arrange this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's Register or the testing company of your choice.
In the new millennium, Yufeng is creating a comfortable working environment, excellent corporate culture, perfect management system, and good career training to lead all employees to start a new journey.
Yufeng is open to the visit by all our dear friends.
