JIS/DIN/ANSI Cast Iron Butterfly Valve with High Quality

JIS/DIN/ANSI Cast Iron Butterfly Valve with High Quality
Price: US $ 18.59-155.65/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 30/Piece
Pay Type: L/C,T/T
Usage: The valve is mainly used to cut off the fluid it also can be designed to have the function of adjusting and cutting off the fluid.

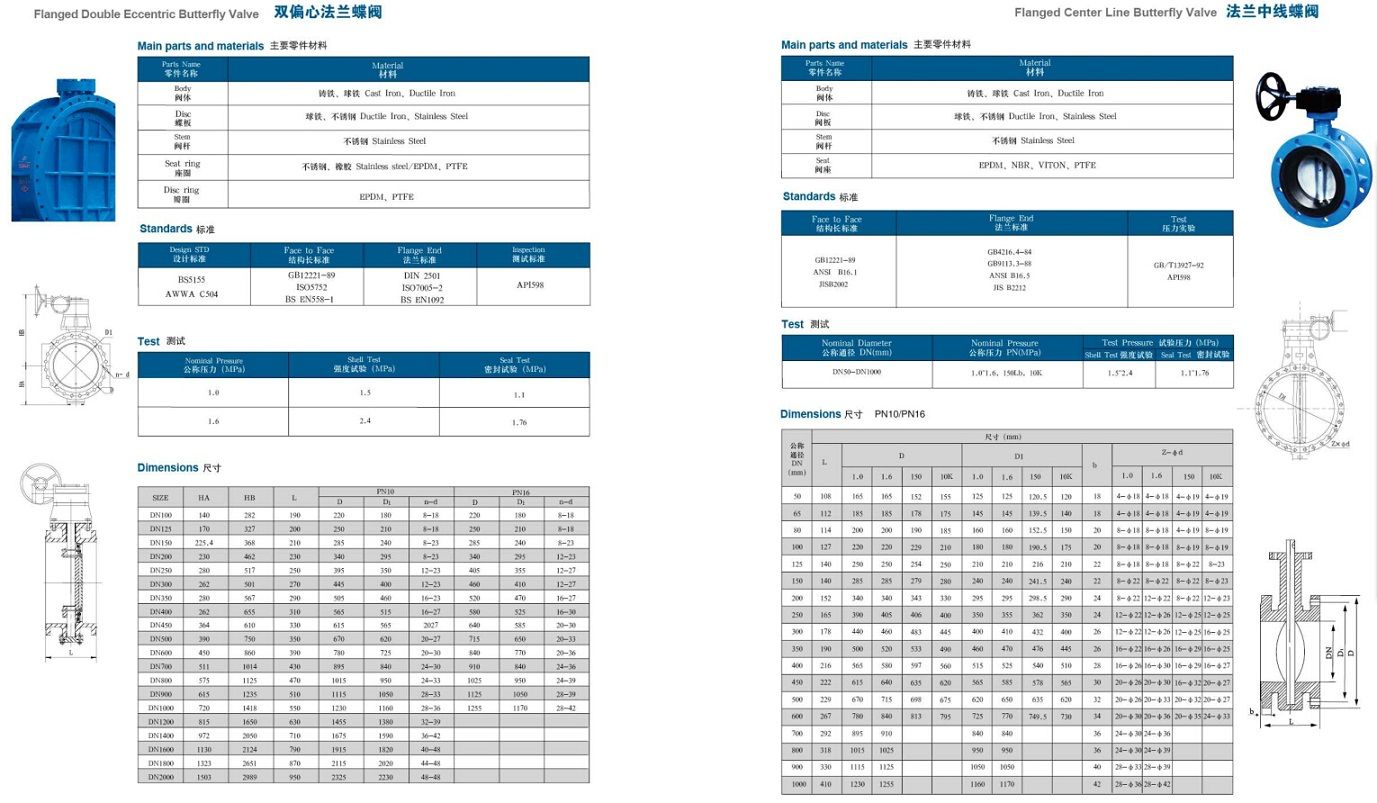

Main parts and materials:
1. Body & Bonnet: Cast iron
2. Disc: Stainless steel
3. Stem: Stainless steel
4. Seat Ring: NBR/EPDM

Standards:
1. Design and Manufature: KS B 2813
2. Face to Fact: KS B 2306
3. Flange End: KS B 1511
4. Inspection: KS B 2304

Test:
1. Nominal Pressure: 10K
2. Shell Test(MPa): 1.5
3. Seal Test (MPa): 1.1
Prod Model: D341X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: ISO9001 JIS
Size: 40-300mm
Connection Form: Wafer
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Force Sealed
Working Temperature: Medium Temperature (',120??C
Application: Household Usage
Material Of Seal Surface: Soft Sealed
Structure: Center Vertical Plate
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
