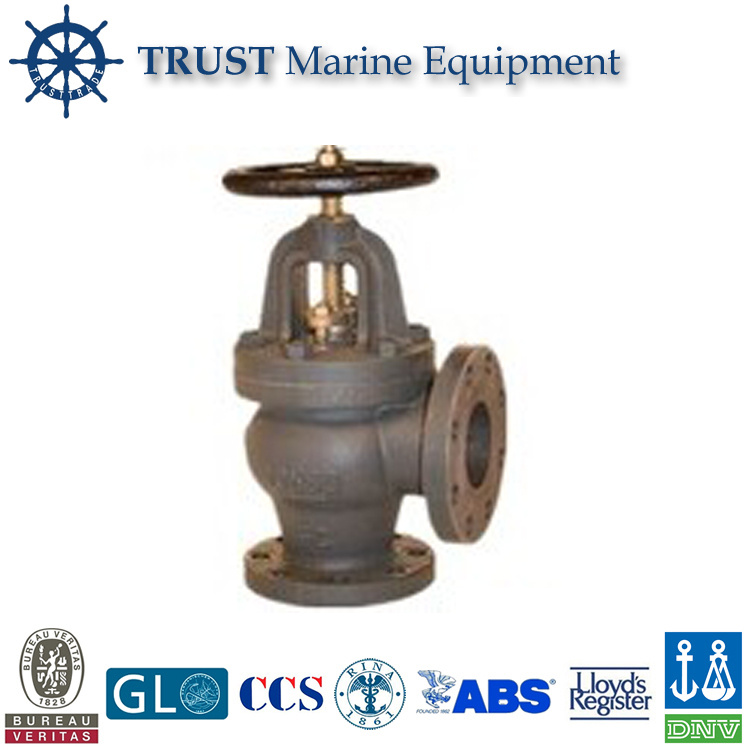

Name of Commodity:JIS F7354 Cast Iron 5K Screw-down Check Angle Valves (Size:50-550)
Product Description
1.Standard: JIS F7354 & JIS F7376
2.Size: DN50~DN500
3.Material:Cast Iron
4.Pressure: 5Kgf/cm2, 10Kgf/cm2
Marine Cast Iron Screw-down Check Angle Valve ( JIS F7354 & JIS F7376 )
1. The flow path is simple, small dead zone and vortex area, scouring action by means of the media itself, which can effectively prevent the media from clogging. And has good self-cleaning properties.
2.Small flow resistance, flow coefficient smaller than the single seat valve, equivalent with the flow coefficient of double-seat valve.
It's suitable for the case of high viscosity fluid containing suspended particulate matter,or to request a place at right angles to the pipe. Its flow is generally bottom into the side.
Technology Parameter
JIS F7354 Cast Iron 5K Screw-down Check Angle Valves (Size:50-550) |
DN (mm) |
L |
H |
Handwheel's Dia Do |
Connection Dimension of Flange |
Weight(kg) |
D |
C |
t |
n-d |
50 |
100 |
240 |
160 |
130 |
105 |
16 |
4-15 |
13.0 |
65 |
115 |
245 |
180 |
155 |
130 |
18 |
4-15 |
18.2 |
80 |
130 |
255 |
180 |
180 |
145 |
18 |
4-19 |
23.3 |
100 |
150 |
300 |
224 |
200 |
165 |
20 |
8-19 |
33.5 |
125 |
170 |
320 |
250 |
235 |
200 |
20 |
8-19 |
46.5 |
150 |
190 |
365 |
280 |
265 |
230 |
22 |
8-19 |
64.0 |
200 |
220 |
425 |
315 |
320 |
280 |
24 |
8-23 |
104 |
250 |
275 |
510 |
355 |
385 |
345 |
26 |
12-23 |
175 |
300 |
310 |
565 |
400 |
430 |
390 |
28 |
12-23 |
243 |
350 |
360 |
660 |
500 |
480 |
435 |
30 |
12-25 |
336 |
400 |
395 |
730 |
560 |
540 |
495 |
30 |
16-25 |
455 |
450 |
440 |
835 |
630 |
605 |
555 |
30 |
16-25 |
618 |
500 |
486 |
915 |
710 |
655 |
605 |
32 |
20-25 |
800 |
550 |
530 |
985 |
800 |
720 |
665 |
32 |
20-27 |
1161 |
a) Applicable medium:sea water,fresh water,oil,air temperature≤300°C steam. |
