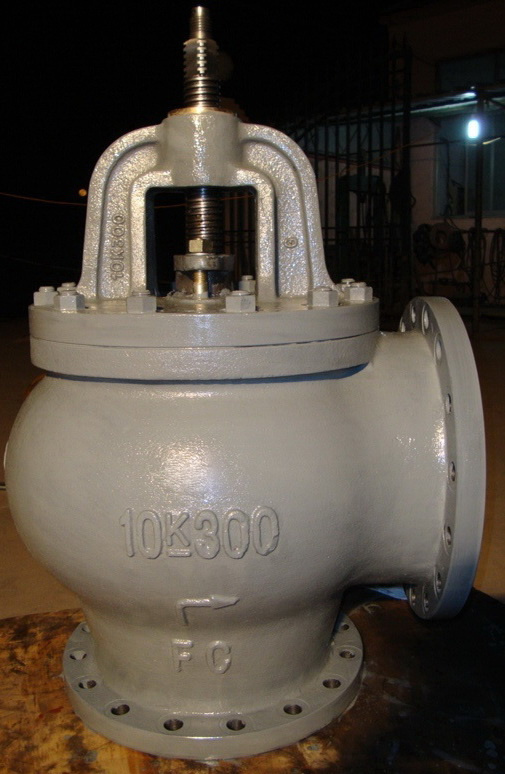

Marine cast iron/steel angle valve used in shipbulding.
Applicable Scope:
The products are used for controling the medium to open and close, preventing refluence in fuel iol piping, lubricating oil piping, water piping and steam piping at temperatures 205C or less.
Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
Normial Pressure: 0.49Mpa
Seal Pressure: 0.761Mpa
Intensity Pressure: 1.03Mpa
We supply:
JIS F7306 5K50-500 JIS CAST IRON ANGLE VALVE
JIS F7308 10K50-250 JIS CAST IRON ANGLE VALVE
JIS F7310 16K50-200 JIS CAST IRON ANGLE VALVE
JIS F7312 5K50-250 JIS CAST STEEL ANGLE VALVE
JIS F7320 10K50-250 JIS CAST STEEL ANGLE VALVE
JIS F7314 20K50-200 JIS CAST STEEL ANGLE VALVE
