JIS20k Scph2/A216 Wcb Globe Valve (J41H-20K-DN100)
Price: |
US $ 79/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

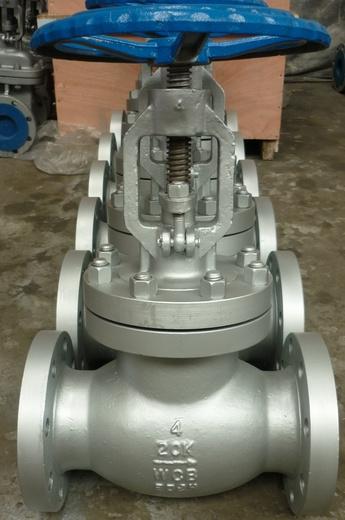

JIS20K SCPH2/A216 WCB Globe Valve(J41H-20K-DN100)
specification:
1. Reliable sealing and easy opening and closing
2. production in accordance with JIS
.
3. Material: stainless steel 304,316
1. Design: JIS B2071; JIS B2081
2. Pressure-Temperature Rating: ASME B 16.34
3. Face to face: JIS B2002
4. Flange dimensions: JIS B2212; JIS B2214
5. Inspection and testing: API 598
6. Body material: G5121-SCS13; SCS13A; SCS14; SCS14A; SCS19; SCS19A; SCS16; SCS16A; G5151-SCPH2.
1 | Body | JIS-SCS13 |
2 | Disc | JIS-SUS304/JIS-SCS13 |
3 | Disc Cap | JIS-SUS304/JIS-SCS13 |
4 | Stem | JIS-SUS304 |
5 | Gasket | PTFE/Stainless steel+PTFE Winding |
6 | Bonnet | JIS-SCS13 |
7 | Packing | PTFE/Flexible Graphite |
8 | Gland | JIS-SUS304 |
9 | Gland flange | JIS-SCS13 |
10 | Stem nut | A439-D2 |
11 | Handwheel | QT400-15 |
12 | Nameplate | JIS-SUS304 |
13 | Handwheel nut | A194-8 |
14 | Nut | A194-8 |
15 | Bonnet bolt | A193-B8 |
16 | Eyebolt pin | JIS-SUS304 |
17 | Eyebolt | A193-B8 |
18 | Nut | A194-8 |
Prod Model: |
J41H-20K-DN100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
API 6D, CE, ISO9001:2008,Ks.Kc |
Structure: |
Through Way Globe Valve |
Sealing Form: |
Gland Packings Globe Valve |
Stem Thread Position: |
Outside Screw Stem Globe Valve |
Application: |
Oxygen Globe Valve |
Standard: |
JIS |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
