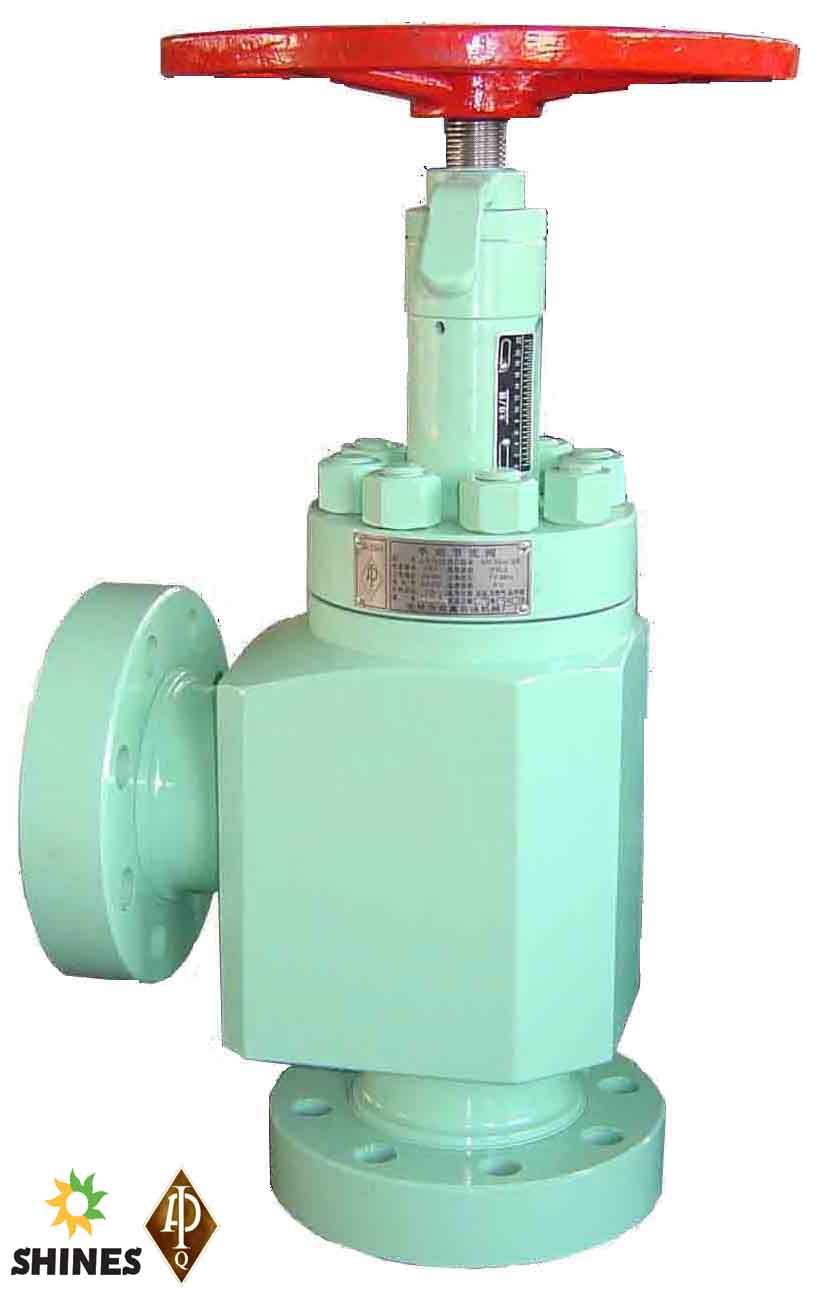

Jlk52-35 Manual Positive Choke Valve (API 6A)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Manual throttle valve
The choke valve as a main part of Xmas tree and manifold is mainly used for controlling the production rate of the oil well. Its working pressure reaches 10000psi. Choke valves can be classified as adjustable choke valves and fixed choke valves. The adjustable choke valve control the effective opening area of the choke bean by rotating hand wheel to drive stem forward and backward, in order to control and adjust the production rate. The fixed choke valve controls and adjusts the production rate by changing the flow bean size.
The features :
1. The union used for connecting the bonnet and the body of the fixed choke valves allows fast make-up and break-out.
2. Stem tip and bean adaptor are fabricated from special carbide alloys for corrosion and abrasion resistance.;
3. Indicator lens with scale marks allows the operator to check the stem's position and actual orifice area;
4. Turn the hand wheel counter-clockwise and the valve will open; turn the hand wheel clockwise and the valve will close.
No. | Description | Quantity | Material | Remark | 1 | Bushing | 1 | Teflon | | 2 | Valve body | 1 | 35CrMo | | 3 | Valve bonnet bolt | 8 | 35CrMo | | 4 | "o"ring | 2 | NBR | | 5 | Seat bushing | 1 | 35CrMo | | 6 | Valve seat barrel | 1 | YG8 | | 7 | Stem adaptor | 1 | 35CrMo | | 8 | Valve core | 1 | YG8 | | 9 | "o"ring | 2 | NBR | | 10 | Packing box | 1 | 35CrMo | | 11 | "o"ring | 2 | NBR | | 12 | Valve bonnet | 1 | 35CrMo | | 13 | Packing gland | 1 | 35CrMo | | 14 | Valve bonnet nut | 8 | 35CrMo | | 15 | Valve stem | 1 | 2Cr13 | | 16 | Screw housing | 1 | 40Cr | | 17 | Saddle key | 1 | 45 | | 18 | Valve stem nut | 1 | ZcuA19-4 | | 19 | Hand wheel | 1 | QT400-17 | | 20 | Indicator ring | 1 | 2Cr13 | | 21 | Stem protector | 1 | Q235 | | 22 | Bearing bonnet | 1 | 40Cr | | 23 | Bearing | 2 | | Standard part | 24 | Flat key | 1 | | Standard part | 25 | Grease cup | 1 | | Standard part | 26 | Packing ring | 2 | 2Cr13 | | 27 | Packing | 5 | | | |
|
Prod Model: |
JLK seris |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
1 13/16" - 4 1/16" |
Material Class: |
AA-Ff |
Specification Level: |
Psl1, 2, 3 |
Performance Level: |
RP1 |
Usage: |
Oil (',Gas) Production Machinery |
Type: |
Petroleum Drilling Machine |
Certification: |
API 6A |
Jiangsu Shuangxin Petroleum Machinery is a leading company in Jianhu petroleum equipment manufacturing base. In an area of 400 mu, the company constructed 65, 000 square meters of plant building and 5, 000 square meters of research and development building. The company employs 418 people, has modern metal processing, large steel casting, heat treatment and product assembling production line and full ranges of testing equipments. Its product range covers: Drilling fluid manifold\choke and kill manifold\new high energy-efficient pumping unit\BOP\Christmas tree\series of valves\tubing head\casing head\drilling mud pump accessories and so on, part of the products are suitable for offshore oil exploitation. Drilling fluid manifold is famous brand products in Jiangsu province and China's petroleum and petrochemical equipment manufacturing industry, ZJ90DB drilling fluid manifold is high-tech product in Jiangsu province which has been included in national innovation fund project. Production of new high energy-efficient pumping unit marks Jianhu petroleum equipment industry achieves terminal and high-end oriented of the products in the first time. It is awarded first set of major equipment product\excellent new product in Jiangsu province, has been listed in nation torch program. The company has AAA contract credit grade, obtains quality\environment\security system certifications, establish enterprise academician workstation\postdoctoral innovation base of Jiangsu province\petroleum energy-efficient pumping unit engineering research center in Jiangsu province, has obtained more than 60 pieces of patent for invention and patent for utility models. The company is national high-tech enterprise\national implementing standard pilot enterprise for the integration of the IT application with industrialization \technical center in Jiangsu province\demonstration enterprise in Jiangsu province for the integration of the IT application with industrialization\one of the top 50 enterprises in China's petroleum and petrochemical equipment manufacturing industry.
The products are sold to all the markets in China and exported to Europe, America, Middle East and other regions. It has established a foreign trade and information center in Shanghai; It has set up the research, service and sales centers in Houston, the United States and Vancouver, Canada. Shuangxin Petroleum upholds "Details forge classic; Quality defines the future" as the enterprise spirit, makes new and greater contribution to development of China's petroleum equipment manufacturing industry and world energy.
