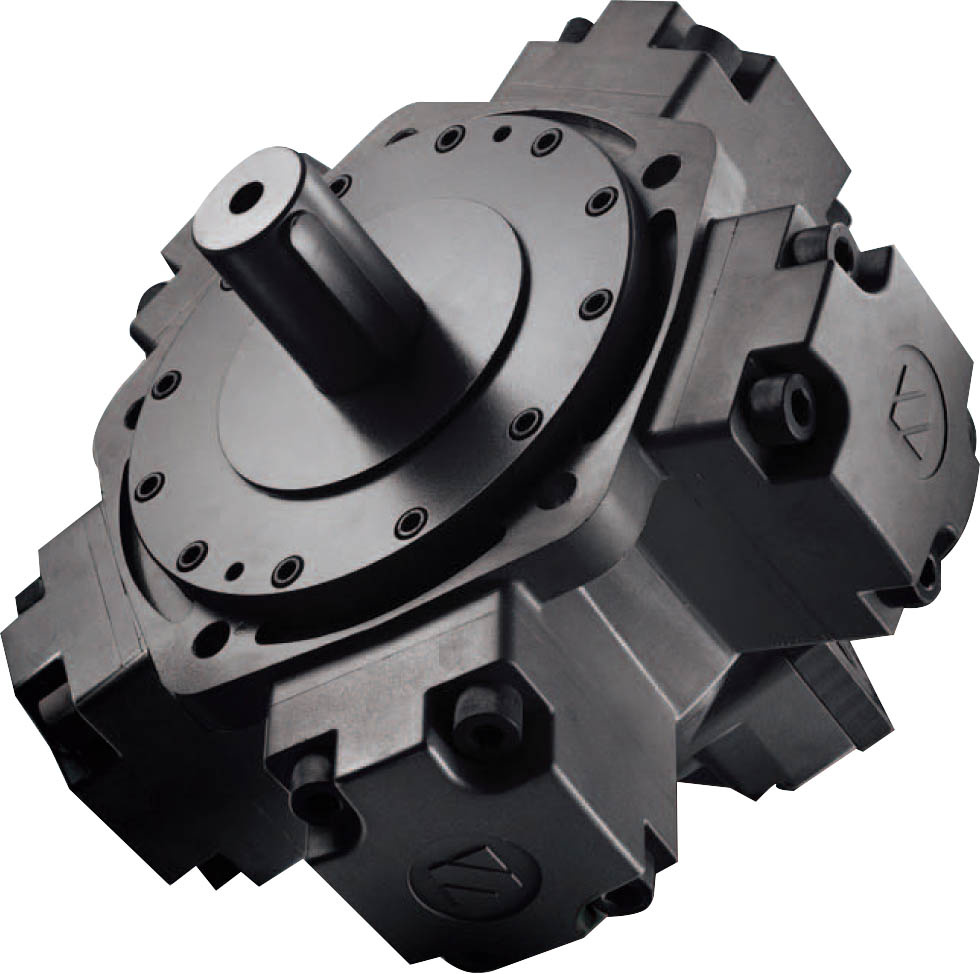

JMDG Radial piston hydraulic motor
JMDG is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry,mining, shipping, constructing machinery, especially for plastic injection molding machinery, hydraulic winch, transmission etc.
Hydraulic Piston Motor is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastics injection molding machinery, hydraulic winch, transmission ect.
Characteristics:
1.Low noise
2.High staring torque ( mechanical efficiency improved to over 0.9 ), good stability when low speed.
3.High volumetic efficiency
4.Higher mechanical efficiency
5.Opposite rotating available
6.Radial and axial load available
7.Higher kw/kg ratio
| TYPE | Displacement | Pressure(Mpa) | Torque(N.m) | Speed range | Max.cont.Power | Weight |
| ml/r | peak. | cont. | Rate | Theoric | r/min | kw | kg |
| JMDG1-50 | 56 | 22 | 16 | 128 | 8 | 35-500 | 16 | 23 |
| JMDG1-63 | 64 | 22 | 16 | 150 | 9 | 35-500 | 16 | 23 |
| JMDG1-80 | 78 | 20 | 16 | 183 | 11 | 35-500 | 16 | 23 |
| JMDG1-100 | 96 | 20 | 16 | 225 | 14 | 35-500 | 16 | 23 |
| JMDG1-125 | 126 | 20 | 16 | 295 | 18 | 35-500 | 16 | 23 |
| JMDG1-160 | 159 | 20 | 14 | 326 | 23 | 35-500 | 16 | 23 |
| JMDG2-100 | 113 | 22 | 16 | 264 | 17 | 30-400 | 25 | 28 |
| JMDG2-150 | 157 | 22 | 16 | 370 | 23 | 30-400 | 25 | 28 |
| JMDG2-175 | 176 | 20 | 16 | 412 | 26 | 30-400 | 25 | 28 |
| JMDG2-200 | 201 | 20 | 16 | 471 | 29 | 30-400 | 25 | 28 |
| JMDG2-250 | 254 | 18 | 14 | 520 | 37 | 30-400 | 25 | 28 |
| JMDG2-280 | 271 | 16 | 14 | 556 | 39 | 30-400 | 25 | 28 |
| JMDG3-200 | 199 | 22 | 16 | 466 | 29 | 30-350 | 37 | 36 |
| JMDG3-250 | 254 | 22 | 16 | 595 | 37 | 30-350 | 40 | 36 |
| JMDG3-300 | 289 | 18 | 14 | 592 | 42 | 30-350 | 40 | 36 |
| JMDG3-350 | 351 | 16 | 14 | 720 | 51 | 30-350 | 40 | 36 |
| JMDG3-400 | 397 | 16 | 14 | 814 | 58 | 30-350 | 40 | 36 |
| JMDG3-450 | 462 | 16 | 14 | 948 | 58 | 30-350 | 37 | 36 |
| JMDG6-400 | 397 | 22 | 16 | 930 | 58 | 25-320 | 60 | 65 |
| JMDG6-450 | 452 | 22 | 16 | 1059 | 66 | 25-320 | 63 | 65 |
| JMDG6-500 | 491 | 20 | 16 | 1150 | 72 | 25-320 | 63 | 65 |
| JMDG6-600 | 594 | 20 | 16 | 1392 | 87 | 25-320 | 65 | 65 |
| JMDG6-700 | 683 | 20 | 16 | 1600 | 100 | 25-320 | 65 | 65 |
| JMDG6-750 | 754 | 18 | 14 | 1546 | 110 | 25-320 | 65 | 65 |
| JMDG6-800 | 799 | 16 | 14 | 1638 | 117 | 25-320 | 65 | 65 |
| JMDG8-600 | 617 | 20 | 16 | 1446 | 90 | 20-280 | 80 | 71 |
| JMDG8-700 | 710 | 20 | 16 | 1664 | 104 | 20-280 | 80 | 71 |
| JMDG8-800 | 810 | 18 | 14 | 1661 | 118 | 20-280 | 85 | 71 |
| JMDG8-900 | 889 | 18 | 14 | 1823 | 130 | 20-280 | 85 | 71 |
| JMDG8-1000 | 1000 | 16 | 14 | 2051 | 146 | 20-280 | 85 | 71 |
| JMDG11-700 | 714 | 22 | 16 | 1673 | 104 | 18-280 | 80 | 90 |
| JMDG11-800 | 782 | 22 | 16 | 1832 | 114 | 18-280 | 80 | 90 |
| JMDG11-900 | 9003 | 22 | 16 | 1832 | 114 | 18-280 | 80 | 90 |
| JMDG11-1000 | 995 | 20 | 16 | 2332 | 146 | 18-280 | 85 | 90 |
| JMDG11-1100 | 1116 | 20 | 16 | 2615 | 163 | 18-280 | 85 | 90 |
| JMDG11-1200 | 1175 | 18 | 14 | 2409 | 172 | 18-280 | 85 | 90 |
| JMDG11-1300 | 1296 | 18 | 14 | 2658 | 190 | 18-280 | 80 | 90 |
| JMDG16-1400 | 1375 | 22 | 16 | 3222 | 201 | 15-250 | 100 | 160 |
| JMDG16-1600 | 1648 | 22 | 16 | 3862 | 241 | 15-250 | 110 | 160 |
| JMDG16-1800 | 1814 | 20 | 16 | 4252 | 265 | 15-250 | 110 | 160 |
| JMDG16-2000 | 2034 | 18 | 14 | 4171 | 298 | 15-250 | 110 | 160 |
| JMDG16-2400 | 2412 | 18 | 14 | 4946 | 353 | 15-250 | 97 | 160 |
| JMDG16Y-2500 | 2665 | 25 | 20 | 7808 | 390 | 10-200 | 110 | 260 |
| JMDG16Y-3000 | 3029 | 25 | 20 | 8874 | 444 | 10-200 | 110 | 260 |
| JMDG31-2500 | 2550 | 22 | 16 | 5977 | 373 | 10-200 | 150 | 325 |
| JMDG31-2800 | 2826 | 22 | 16 | 6624 | 414 | 10-200 | 150 | 325 |
| JMDG31-3000 | 3050 | 20 | 16 | 7149 | 447 | 10-200 | 140 | 325 |
| JMDG31-3150 | 3142 | 20 | 16 | 7364 | 460 | 10-200 | 140 | 325 |
| JMDG31-3500 | 3419 | 20 | 16 | 8013 | 501 | 10-200 | 140 | 325 |
| JMDG31-4000 | 4170 | 20 | 16 | 9774 | 611 | 10-200 | 130 | 325 |
| JMDG31-4500 | 4522 | 20 | 16 | 10599 | 663 | 10-160 | 130 | 325 |
| JMDG31-5000 | 5190 | 18 | 14 | 10644 | 760 | 10-160 | 130 | 325 |
| MDG71-4600 | 4617 | 22 | 16 | 10822 | 676 | 5-125 | 145 | 415 |
| JMDG71-5400 | 5459 | 20 | 16 | 12795 | 799 | 5-125 | 145 | 415 |
| JMDG71-6300 | 6361 | 18 | 14 | 13046 | 932 | 5-125 | 145 | 415 |
| MDG100-6300 | 6133 | 22 | 16 | 14375 | 898 | 5-100 | 168 | 700 |
| JMDG100-8000 | 7693 | 20 | 16 | 18032 | 1127 | 5-100 | 168 | 700 |
| JMDG100-10000 | 10688 | 18 | 14 | 21921 | 1565 | 5-100 | 200 | 700 |
| JMDG160-12500 | 13335 | 20 | 16 | 30577 | 1911 | 3-80 | 220 | 1000 |
| JMDG160-16000 | 16040 | 18 | 14 | 32182 | 2298 | 3-63 | 220 | 1000 |
Ningbo Yuzhou Hydraulic was founded in 1995, specialized in mobile hydraulic valves and motors, Including hydraulic motors, flow sharing control valve, slewing cushion valve, balance valve, proportional valve, cartridge valve, relief valve, check valve etc, which are widely used in concrete pump machinery, excavators, mobile cranes, forklift, hydraulic winches, drilling equipment, garbage trucks, agricultural/forestry machines, Aerial Work Platforms etc
50000 + M² Factory area,
30+ Senior experts and engineers R&D team
20+ Quality control
60+National Patent and 30 innovation patent
200+ Staff
In 2005 established "Yuzhou hydraulic valves Engineering Center", has more than 30 Senior experts and engineers R&D team, Has developed 7 series of more than 300 kinds of products, and got 60 national patent which 30 innovation patent.
Yuzhou cooperated partner including XCMG, SANY, Zoomlion, LIUGONG, Manitowoc, TEREX, etc.
Yuzhou not only manufacturing for you, but also can design the hydraulic valves or hydraulic system according your demand.
