Vacuum valve has the angle valve, flapper valve, gate valve, ball valve, check valve, butterfly valve... Etc., mode of operation will usually have a manual, pneumatic and electric three. The vacuum valve according to the functional properties of different, respectively, were used in the initial vacuum, low vacuum, high vacuum and ultra high vacuum in different environment. Eurasian vacuum is a vacuum components and vacuum valve professional manufacturer. We manufacture the vacuum valve is mainly in the form of: angle valve (Angle Valve), the type Y valve (Y-Inline Valve), the type Z valve (Z-Inline Valve), the ball valve (Ball Valve), bellows sealed stainless steel valves.
Vacuum valve (Vacuum Valves) of the product is mainly used in the vacuum chamber, all kinds of vacuum equipment and vacuum coating equipment system, its main purpose is to control or regulator gas import or export flow.

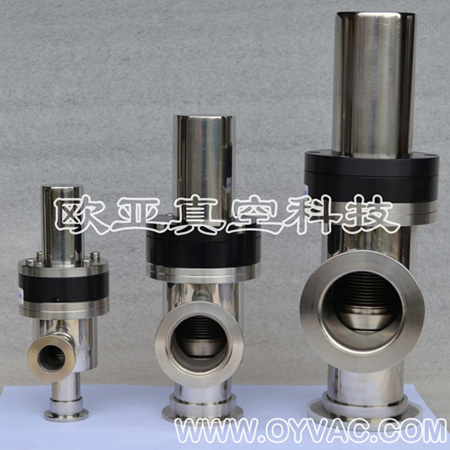

Vacuum angle valve manual
Vacuum valve (Vacuum Valves) - angle valves (manual) is a genus of lifting a poppet valve. When the lifting cone is pushed to the top, the cavity inside the valve structure is an open system and gas flow unhindered. Once you ascend cone is moved to the bottom of the valve, sealing valve sealing rubber ring is compressed, and the denial of gas circulation to achieve sealing effect.
Provide various forms of Ouya vacuum vacuum size angle valve. They are manual and pneumatic hoses and hose, with No. Interface end can welding of KF, ISO, CF flange. Ouya vacuum design all series of angle valves, suitable for vacuum exhaust system, air system, high vacuum pumping and application of semiconductor technology, and research system.
Body: stainless steel 304S.S. (according to customer requirements to provide other material)
- enhance cone: stainless steel 304S.S. (according to customer requirements to provide other material)
Interface end outer diameter: 3/4 ~ 8 inches
- hose: Welded AM-350 (optional)
Sealing: FR O ring
Leakage rate: 2 * 10-10 Pa M3/s
- the use of pressure range: 2 torr to 760 Torr x 10-9
Max using the pressure: 1.2 Bar
- temperature resistance limit: 150 degrees C FR
Linhai Eurasian Vacuum Technology Co., Ltd. is a collection research and development, manufacture, sales of the vacuum parts production enterprises. The main products are: KF,ISO, CF Vacuum Valve; KF, ISO, CF Vacuum Bellows; Vacuum Flanges; Pipe Fittings; Vacuum Pump; vacuum seal; vacuum fasteners and non-standard parts etc..
Products are widely used in: glass, film, semiconductor, solar cell, photovoltaic, surface treatment, refrigeration, communications, electronics, metallurgy, aviation, aerospace, chemical industry, light industry, food, medicine, health, and printing industries.
Companies adhere to the "focus on vacuum, focus on user needs" philosophy, always put the product quality and customer demand in the first place. Continuously improve the quality of products and services, goods exported to Europe and the United States, Japan, Taiwan and other countries and regions, well received by customers at home and abroad. Welcome new and old customers come to negotiate and cooperation.
