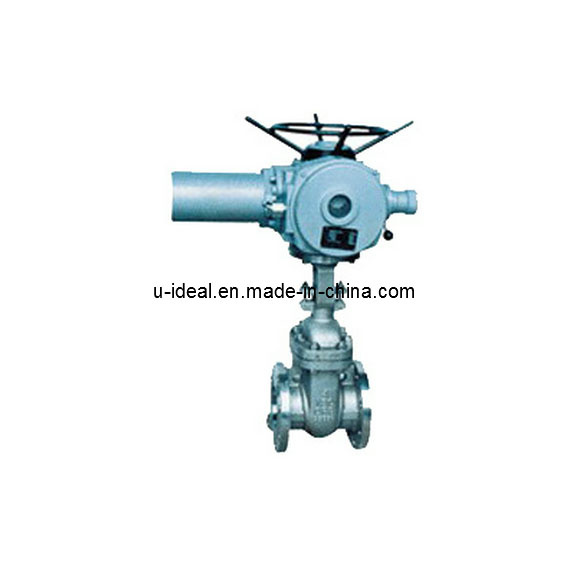

Kg130 Electric Type Gate Valve
| Price: |
US $ 70/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Electric gate valve:
1)Standards:
A)Design&Manufacture: API 600, API 6D, BS 1414, ASME B16.34
B)Face to Face: API 6D, ASME B16.10, DIN 3202, BS2080
C)Connection End: ASME B16.5, ASME B16.25
D)Test: ISO5208, API 600, BS 6755
2)Sizes: 1/2" - 36" or DN12 - DN900
3)Pressure Rating: Class150 - Class1500 or PN16 - PN250
4)Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
5)Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator
Class | Pressure Test(MPa) | Temperature(°C) | Applicable Medium | |
| Body | L seal | R
seal | Low-pressure
seal | "G"
type | "D"
type | General | "KZtype
"Z"type | | PN(MPa) | 1.0 | 1.5 | 1.1 | 1.1 | 0.6 | -29~250 | -45~121 | -29~121 | Including H2S and CO2>500Mg/m 3 Medium | Oil
,gas,
water,etc.
| | 1.6 | 2.4 | 1.76 | 1.76 | 0.6 | | 2.5 | 3.75 | 2.75 | 2.75 | 0.6 | | 4.0 | 6.0 | 4.4 | 4.4 | 0.6 | | 6.4 | 9.6 | 7.04 | 7.04 | 0.6 | | 10.0 | 15.0 | 11.0 | 11.0 | 0.6 | | 16.0 | 24.0 | 17.6 | 17.6 | 0.6 | Class
(Lb) | 150 | 2.93 | 2.07 | 2.07 | 0.6 | | 300 | 5.52 | 5.52 | 5.52 | 0.6 | | 400 | 10.0 | 7.31 | 7.31 | 0.6 | | 600 | 15.0 | 11.03 | 11.03 | 0.6 | | 900 | 22.4 | 16.54 | 16.54 | 0.6 |
|
| Prod Model: |
KG130 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2" - 36" |
| Design&Manufacture: |
API 600, API 6D, BS 1414, Asme B16.34 |
| Face To Face: |
API 6D, Asme B16.10, DIN 3202, BS2080 |
| Connection End: |
Asme B16.5, Asme B16.25 |
| Test: |
ISO5208, API 600, BS 6755 |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
