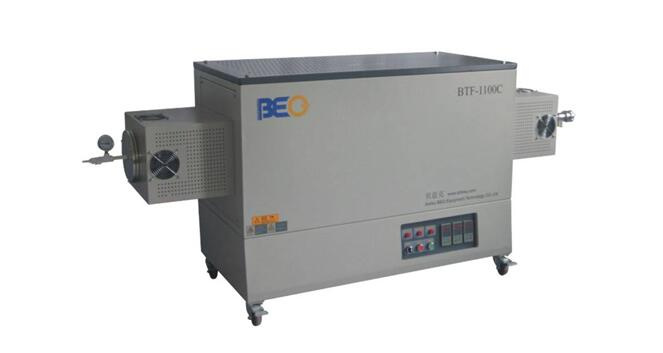

Large Caliber Micro Positive Pressure Tube Furnace Btf-1100c

Large Caliber Micro Positive Pressure Tube Furnace Btf-1100c
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

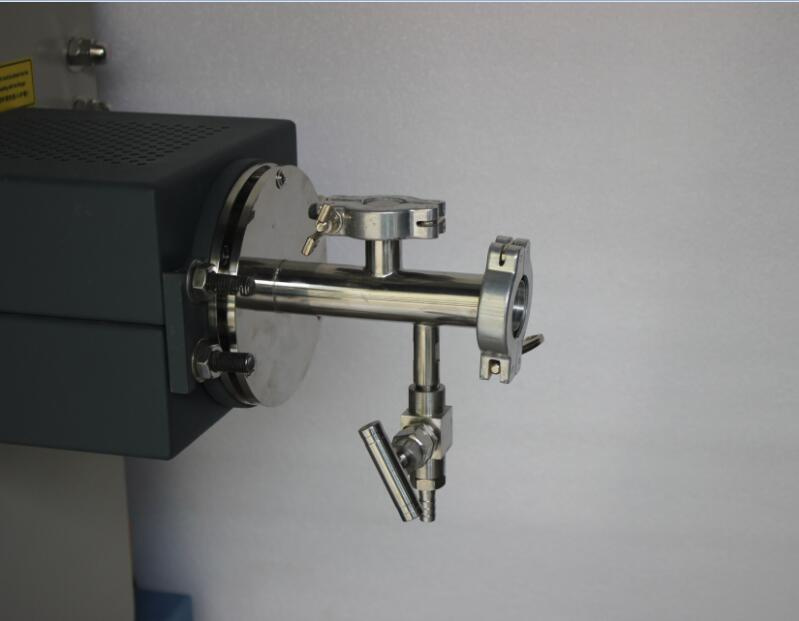

                                              Flange

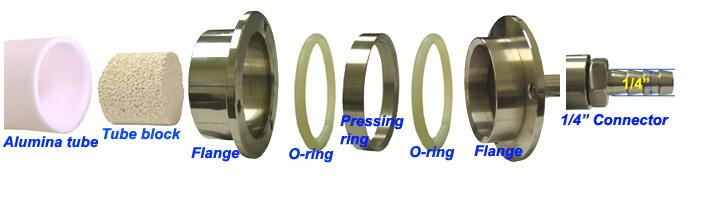

                                            Tube installation

Main features:

1.The two ends is equipped with Water-cooling sealing flange.There is no need of the Block. So that the purity inside of the tube can be promised.

It is a kind of vacuum tube furnace.It can work understand the conditional of Micro-positive pressure.And it can work in the CVD group.

The connector and valve is made from  PTEE .The ability of  anti-corrosive is good.


Specification:



Power

12KW

Voltage

AC 208-240V single phase  50/60HZ
Tube structure


*Double layer steel structure

*High purity AL2O3 fibrous insulation with max.energy saving.

*High purity alumina coating on refractory ceramics for longer service life.


Working temperature

Max. temperature 1100ºC(1 hour)
Working temperature≤1000ºC
Heating rate≤10ºC/min


Tube size


High purity quartz tube Φ152/φ215/φ280mm×1300mm(optional)
(Optional tube:
Two fibrous ceramic tube blocks are included for blocking heat radiation generated
from tube center.(Ceramic blocks must be fullyed inserted into the furnace chamber before heating )
Quartz blocks are ideal for cleaner processing environment and higher
vacuum efficiency.




Heating zone length


900mm


Constant zone length




500mm



Temperature controller


*PID automatic control nvisa SCR(silicon controller rectifier) power control with phase angle fired,current limiting resistor.
*30 programmable segments for precise control of heating rate,cooling rate and dwell time.
*Built-in over temperature alarm and protection allows for operation without attendant.





Heating element



resistance wire


Standard accessory


quartz tube 2pcs (inside and outside tube),alumina block 4 pcs,stainless steel
 flange 1set,silicon sealing ring2set,high temperature glove 1pair,crucible hook 1 pc

Adopted accessory


quartz block,quartz pallet,quartz hook,manual baffle valve,corrugated tube,clamp,
resistor vacuum gauge,mix-gas system

Size
1300*650*1000mm(L*W*H)


Net weight

250KG

Prod Model: BTF-1100C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Aluminum Die-casting
Anhui BEQ EQuipment Technology Corporation is located in Hefei High-Tech Zone, Anhui Province.

Anhui BEQ Quipment Technology Corporation focuses on producing kinds of material prepsration equipment. As the requirement of customers, we combine research and produce together. Under the work of all BEQers, we are becoming a professional equipment supplier in this special field. We own a number of returnees and experts of the material field. Moreover we have 35 patents, among 8 patents is famous all over the world. We have more technology than other campanys in China. We are working to give out whole solutions for our customers.

Our main product is tube furnace, muffle furnaces, presses, mixers, dry boxes, glove boxes and other products. Theyare used in the new energy materials, metal materials, magnetic materials, semiconductor materials, ceramic materials, electrochemical, thinfilms, of CVD, of PECVD, graphene, silicon nanotubes, nanowires, sapphire (LEDs), optical materials, dental and other fields of study.

With special design, our products have the vantage of unique design, attention to detail, reliable quality and timely after-sales service.

It is a mission for us to provide the most appropriate and effective professional programs solutions for materials science researchers.

To provide full set of solutions is BEQer pursuit!
