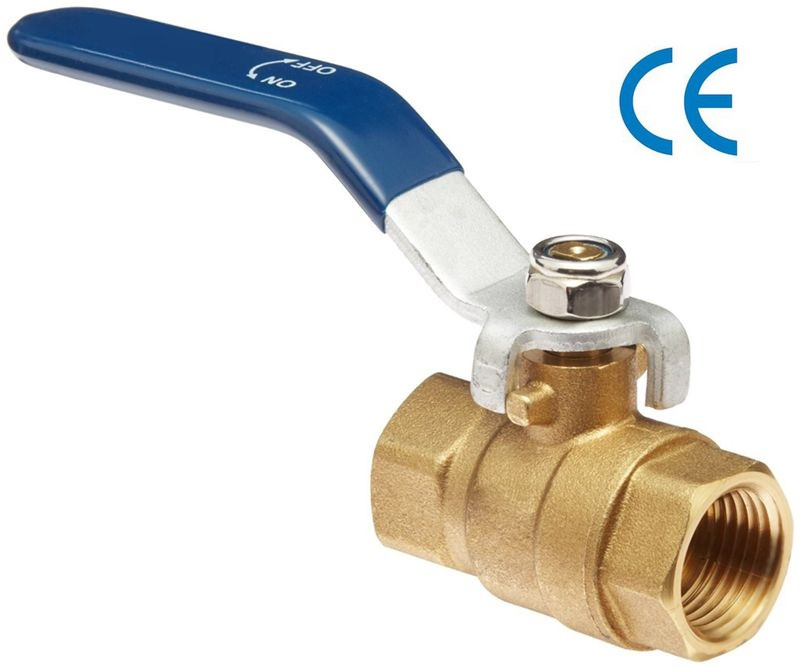

Lever Handle Brass Ball Valve

Product Features
1,Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability
2, Lever handle for manual on/off control
3, PTFE seats and stem packing reduce the risk of leakage
4, Maximum pressure rating of 600 psig for WOG and 150 psig for WSP
5, Female NPT threads for connecting to male threaded pipes

Product Description
1, Brass body aluminum handle It has a metal ball that appears to be SS with Nylon seal material it Works well for my application.
 2,do not drip and do not need maintenance rubber replacements.
3, it turns off. Simple, effective, and loads of fun.Especially the lovely blue plastic grip on the handle.

Ball Valve Size	Thread	Lever Handle color	Handle Material	Ball material	Weight
1/4 to 3/4"	NPT	Black	Alloy	Steel	30g to 50g
1/8 to 3/8"	PT	Red	Steel	Brass	50g to 100g
1/2 to 1 to 2"	GB	Blue	Aluminum	Stainless Steel	above 100g

* Free samples without freight
* mold fee will be refunded for the 1st order
* NO MOQ request
*OEM are welcome


The Boss series brass inline mini ball valve has a lever handle and National Pipe Taper (NPT) female threads on both ends. This valve body is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. Brass can be connected to copper, brass, plastic, aluminum, and welded steel. This valve has a lever handle for manual on/off control. Polytetrafluoroethylene (PTFE) seats reduce the risk of leakage. The valve is full port for reduced friction; its inner diameter is the same as the inner diameter of the pipe it connects to for maximum operating efficiency. This valve has female NPT threads for connecting to male threaded pipes, creating a tighter seal than straight threads. The maximum pressure rating is 600 pounds per square inch (gauge) (psig) for water, oil, and gas (WOG), and 150 psig for working steam pressure (WSP).



Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve. Flow is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter of the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and is reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball's position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications.
