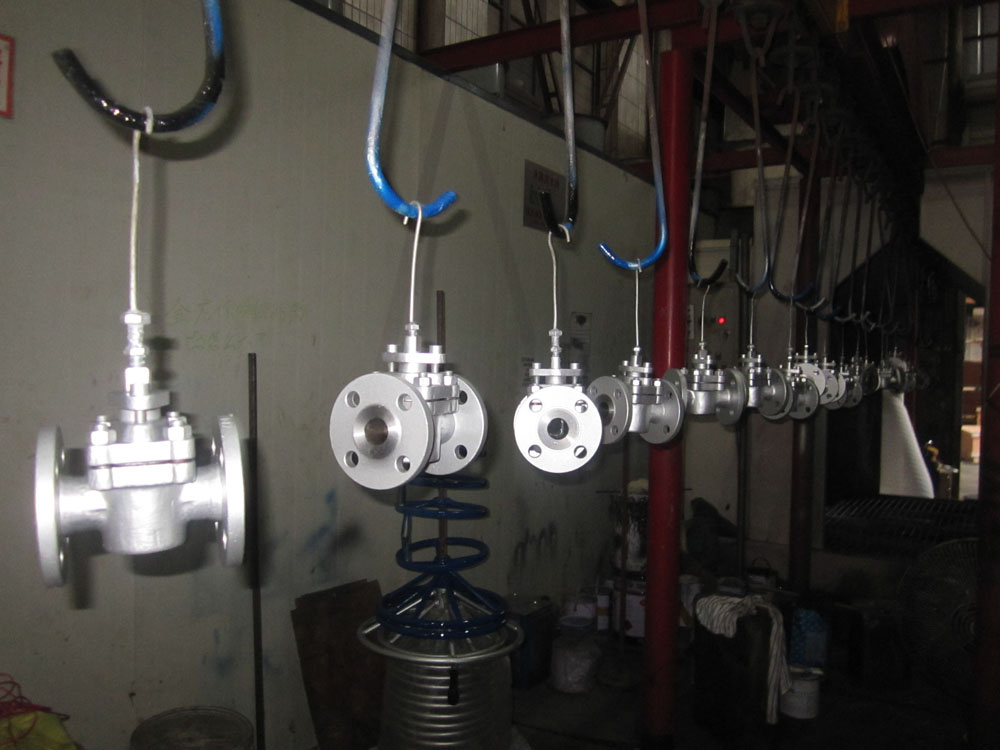

Lever type soft seated plug valve
Size: NPS 1/2"~4"
Pressure Rating: Class 150 lb~Class 300 lb
Material: WCB, LCB, CF8, CF8M, CF3, CF3M
Design & Manufacturing Standard: API 599, API 6D, ASME B16.34
Structure Length Size: ASME B16.10, API 6D
Flange Connection Size: ASME B1.20.1, ASME B16.5, ASME B16.25
Butt Welding Size: ASME B16.25
Pressure-Reference Temperature: ASME B16.34
Check & Experiment: ISO 5208, API 6D
NO.
|
Part name
|
Material
|
A216 WCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
1
|
Body
|
A216 WCB
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
2
|
Sleevd
|
PTFE/RPTFE
|
3
|
Plug
|
A182 F6a
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
4
|
Gasket
|
Flexible graphite+stainless steel PTFE
|
5
|
Adjusting gasket
|
A182 F6a
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
6
|
Cover
|
A216 WCB
|
A351 CF8
|
A351 CF8
|
A351 CF3
|
A351 CF3M
|
7
|
Adjusting bolt
|
A193 B7
|
A193 B8
|
A193 B8M
|
A193 B8M
|
A193 B8M
|
8~9
|
Bolt/nut
|
B7/2H
|
B8/8
|
B8M/8M
|
B8M/8M
|
B8M/8M
|
10
|
Wrench
|
ASTM A105/A216 WCB
|
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.
We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.
THV VALVE has obtained certificates of ISO9001: 2008 and CE. All valves are with features of advanced structure, consummate production technology, complete specifications, good quality, etc. To satisfy the requirements of purchasing different types of valves from customers, we have established a trading department to purchase good quality products for our customers. All suppliers are listed in our SUPPLIER LIST after strict quality examining, and our QC will do inspect from raw materials to finished products, to ensure all specifications or requirements will not occur problems.
Quality first is our commitment, and competitive price and timely delivery are our promise. Our customers have trusted us to provide them with reliable valve products to meet their most severe and critical requirements. We welcome customers worldwide to build mutually beneficial network, and we are looking forward to cooperation with you on the successful road to create brilliant!
