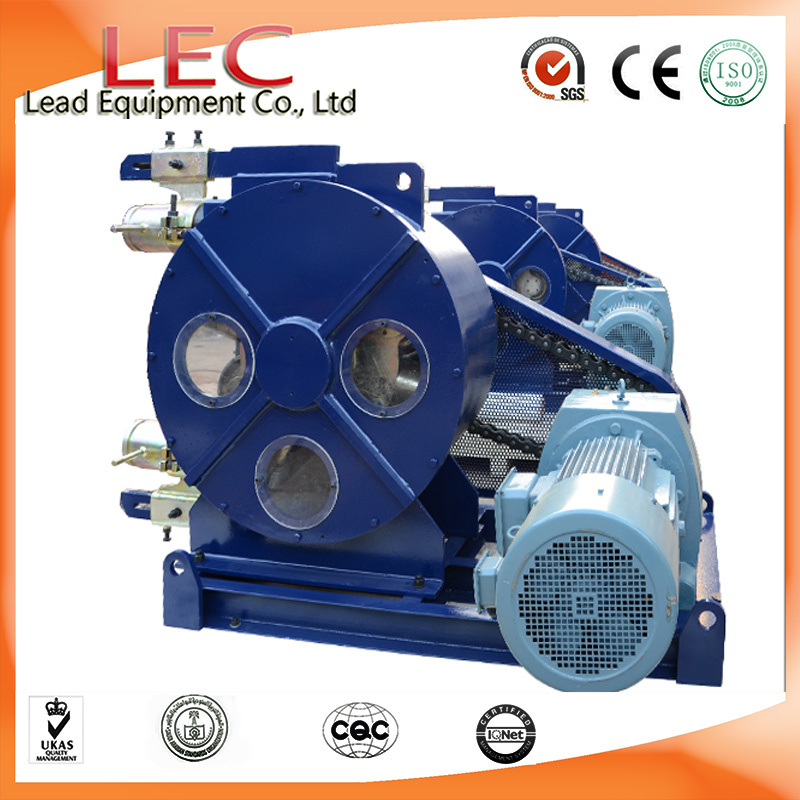

Lh Series Different Output Squeeze Hose Peristaltic Pump
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Industrial peristaltic pump
Description:LH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries. LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.ApplicationLEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).Features:No sealsNo valvesSelf -primingOnly tube to replaceDry running without damageReversibleNo contact between product and mechanical partsAble to pump products with solid parts insideEasy maintenance, low-cost, short down time
Pump mode | Output 1/h | Pressure MPa | Rev. r/mm | Max. Particle Dia mm | Max. Suct. Left m | Motor Power kw |
LH10 | 60 | 0.6 | 45 | 2 | 2 | 0.37 |
LH10B | 100 | 0.6 | 80 | 2 | 2 | 0.37 |
LH15 | 210 | 0.6 | 45 | 2 | 2 | 0.55 |
LH15B | 300 | 0.6 | 75 | 2 | 2 | 0.55 |
LH25 | 800 | 1.5 | 50 | 3 | 3 | 1.1 |
LH25B | 1300 | 1.5 | 80 | 3 | 3 | 1.5 |
LH32 | 1300 | 1.5 | 50 | 3 | 4 | 2.2 |
LH32B | 1800 | 1.5 | 75 | 3 | 4 | 2.2 |
LH38 | 2000 | 1.5 | 40 | 5 | 4 | 2.2 |
LH38B | 2700 | 1.5 | 55 | 5 | 4 | 3.0 |
LH38C | 3500 | 1.5 | 70 | 5 | 4 | 4.0 |
LH50-558 | 4200 | 1.5 | 35 | 6 | 5 | 4.0 |
LH50-558B | 5400 | 1.5 | 45 | 6 | 5 | 5.5 |
LH50-680 | 6300 | 1.5 | 35 | 6 | 5 | 7.5 |
LH50-680B | 8000 | 1.5 | 45 | 6 | 5 | 7.5 |
LH65-680 | 9200 | 1.2 | 40 | 8 | 5 | 7.5 |
LH65-680B | 12000 | 1.5 | 45 | 8 | 5 | 11.0 |
LH65-770 | 13500 | 1.2 | 45 | 8 | 5 | 11.0 |
LH65-770B | 16500 | 1.0 | 55 | 8 | 5 | 11.0 |
LH76-770 | 18000 | 1.0 | 45 | 10 | 5 | 11.0 |
LH76-770B | 22000 | 1.0 | 55 | 10 | 5 | 15.0 |
LH76-915 | 24000 | 1.0 | 50 | 10 | 5 | 15.0 |
LH76-915B | 28000 | 1.0 | 40 | 10 | 5 | 18.0 |
LH100 | 33500 | 1.0 | 35 | 15 | 5 | 18.0 |
LH100B | 42000 | 0.75 | 45 | 15 | 5 | 18.0 |
Prod Model: |
LH |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Customized |
Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.
Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.
We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.
LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
