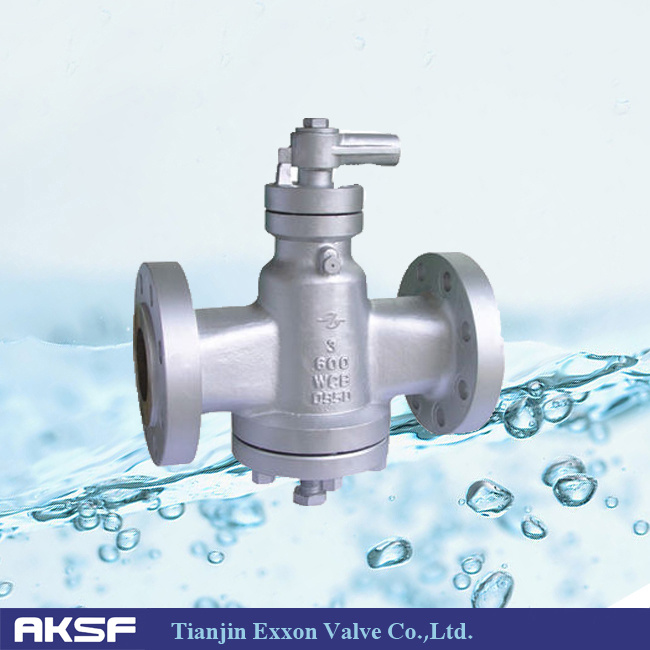

Main structural features:
Bolt bonnet OS & Y lifting-round plug
Opening and closing of the valve is carried out while the sealed surface is taken off, so it will not cause abrasion on the sealed surface
Double direction
Principle of opening and closing of the valve process of opening and closing of the valve
When opening the valve, first of all, turn the hand wheel to make the plug lifted and separated with the sealed surface, the turn the handled by 90° to connect the channel of plug the channel of valve body, so that the valve is opened
When closing the valve, first of all turn the handle by 90° to mark the channel of plug vertical to the channel of valve body, and then the hand wheel to descend the plug, so that the valve is closed
Standards compliance: design and manufacture: API 599, API 6D
Face to face(end to end): ANSI B 16.10
Flanged connection: ANSI B16.5
Butt welded end: ANSI B16.25
