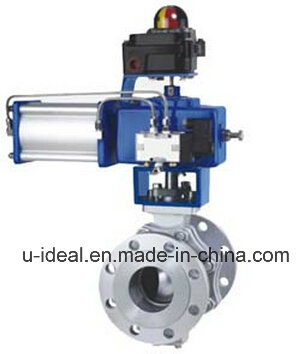

Light Industry Pneumatic O Type Ball Control Valves
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
431 Pneumatic O type soft sealing ball control valve V432 Pneumatic O type hard sealing ball control valve Comprised of pneumatic cylinder actuators and O type ball valves. Light, small and compact, with little flow resistance. Soft sealing seat can reach zero leakage. Applicable to conditions of high differential pressure and large diameter, and fluids with high viscosity, fibre, granule or special gas.
Specifications DN DN25~DN400 PN ANSI150 ~ 600, JIS10K ~40K Material of parts Body WCB, CF8, CF8M Core 304, 316, 316L Seat RPTFE Counterpoint polyphenyl PTFE Stem 304, 316, 316L Fluid temperature Soft sealing RPTFE seat -20+180C Counterpoint polyphenyl seat -20+250C Hard sealing (304, 316L) + STL seat -60+500C Rated stroke 0-90 Ambient temp. -20+80C Flow characteristics Quick open Leakage ANSI Class IV~VI, tinybubbletight
U-ideal self-operated actuators provide control for a wide variety of pressure regulation applications. Coupled with an easy control valve, these actuators can be either self-operated (using process pressure as a signal), or remote-operated. Typical industrial applications include pressure control of water, steam, oil, gas, and other fluids.
A Gas pressure relief(K type), no need of filter.
B Gas pressure regulator(B type), no need of filter.
C Liquid pressure relief(K type), in need of filter for unclean liquid.
D Liquid pressure regulator(B type), in need of filter for unclean liquid.
E Steam pressure relief(K type), in need of condenser, and filter is recommended.
F Steam pressure regulator(B type), in need of condenser, and filter is recommended.
DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 450 | 500 |
PN(mpa) | 1.64.0\6.4 |
Connection Type | Flange |
Temperature Rang | -40~160ºC(Normal)\-40~230ºC(Medium)\-40~425ºC(High) |
Pressure Test | Each valve must go through the shell strength test and sealing performance test: Body strength test pressure is 1.5 times of PN standard. Sealing test is 1.1 times of PN standard,test fluid is water |
Flow Characteristic | Fixed ball valve: Quick open |
Leakage | ANSI Class IV. |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Control Type: |
Self-Operated Control Valve |
Function: |
Pressure Relief Valve |
Application: |
Tank, Pipe, Vessels |
Medium: |
Air Vent |
Switch: |
on-off |
Valve Type: |
Pressure / Vacuum Relief Valves |
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
