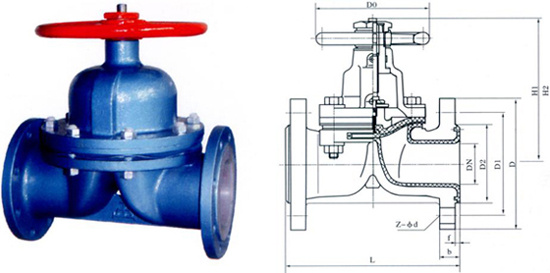

Lined Diaphragm Valve

Lined Diaphragm Valve
Price: Negotiable
Min Order: 1
Technical specificastion

Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89
Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
Flanged Dimension: BS 5156-85, ANSI B16.5, EN 1092, GB/T 17421-98
Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
Operation: Handwheel, Pneumatic, Electric
Pressure Rating: PN6, PN10, PN16, ANSI 125, ANSI 150

Main Material

Body / Bonnet: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel & Duplex
Lining (Optional): Fluorine -- PTFE, FEP, PCTFE, PVDF, TFE, PFA, RPP, PO
Rubber -- NR, BR, IIR, CR, EPDM, CSPE, FKM, SI
Diaphragm: Rubber
Compressor / Disc: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel
Stem: Carbon Steel & Stainless Steel
Handwheel: Iron & Steel
Nominal DNNominal pressureWorking pressureLDD1Z-dFH1H2D0Weight kg
mminch
151/21.01.012595654-1421051161204.5
203/4135105754-1421171281204.5
251145115854-1421211351205.3
321-1/41601351004-1821321501207.5
401-1/21801451104-18315617614010
5022101601254-18316919514013
652-1/22501801454-18320023620020
8033001951604-18321625620025.5
10043502151808-18327032228038
12554002452108-18331538032062
15064602802408-22337845832085
20080.60.65703352958-223518638400150
2501068039035012-224583720500249
3001279044040012-224689778500365
350140.490050046016-224723883500420
4001610056051516-2648681078640630
Zhejiang Aernan Valve Co., Ltd is situated in Oubei which is named as China Valve Town, it is a systemic manufactory, including scientific research, design, production, distribution, after service. Our factory has many years experience in producing kinds of API valves, such as gate valves, ball valves, globe valves and check valves etc.

In the help of scientific technology, continuous innovation and rigorous management system, our company built a full system that integrate distribution, contract, storage, finance and efficiency of personnel so that we can guarantee the quality of production. Our aim is entering into information meshwork, trying to be the best and our long-term target is to develop new products. Our company has got the credit from most consumers as we have higher quality, lower price, more advanced technology and excellent service.

For a company, quality is the base, credit standing is the development. Therefore, we still are keeping innovating and fetching in advanced technology in the effort of the staff, and try our best to meet our clients any requests.

We welcome our clients all over the world to see about our production, and to contract with each other. We expect we could make good winning hand in hand.
