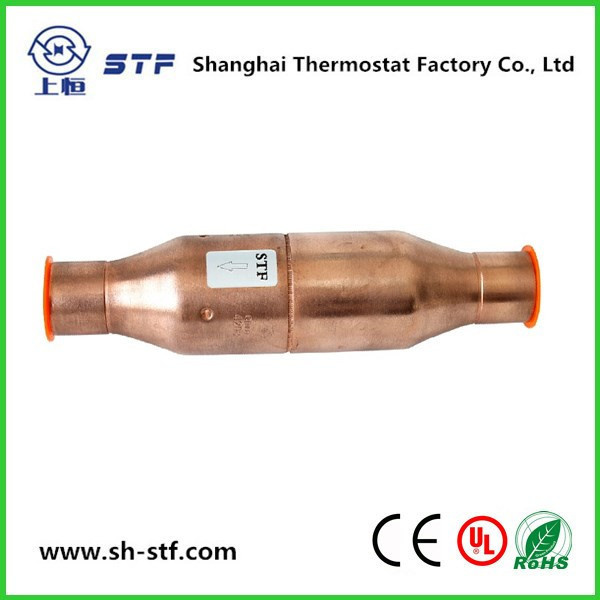

Liquid Check Valve
General:
1. HCV check valve can be applied in the refrigeration system to avoid the refrigerant flows in opposite direction.
2. Full series 1/4~3-1/8".
3. Optimum internal design with small pressure drop and no internal leakage.
4. Inlet filter screen.
5. Temperature of medium: -40~130º C.
Model | Connection size | (mm) Dimensions | (bar) Max. working pressure | Kv Flow rate (m 3 /h) |
L | D |
HCV-04 | 1/4 | 102 | 22 | 55 | 0.48 |
HCV-06 | 3/8 | 102 | 22 | 55 | 0.99 |
HCV-08 | 1/2 | 127 | 29 | 42 | 2.65 |
HCV-10 | 5/8 | 127 | 29 | 42 | 2.95 |
HCV-12 | 3/4 | 127 | 29 | 42 | 5.56 |
HCV-14 | 7/8 | 178 | 40 | 42 | 7.58 |
HCV-18 | 1-1/8 | 213 | 55 | 42 | 13.00 |
HCV-22 | 1-3/8 | 213 | 55 | 42 | 16.27 |
HCV-26 | 1-5/8 | 267 | 80 | 42 | 27.79 |
HCV-34 | 2-1/8 | 267 | 80 | 42 | 48.30 |
HCV-42 | 2-5/8 | 330 | 105 | 38 | 64.55 |
HCV-50 | 3-1/8 | 330 | 105 | 38 | 89.20 |
