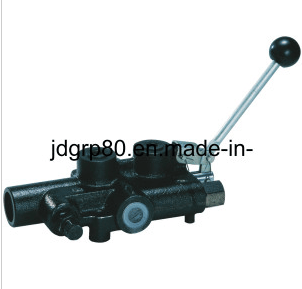

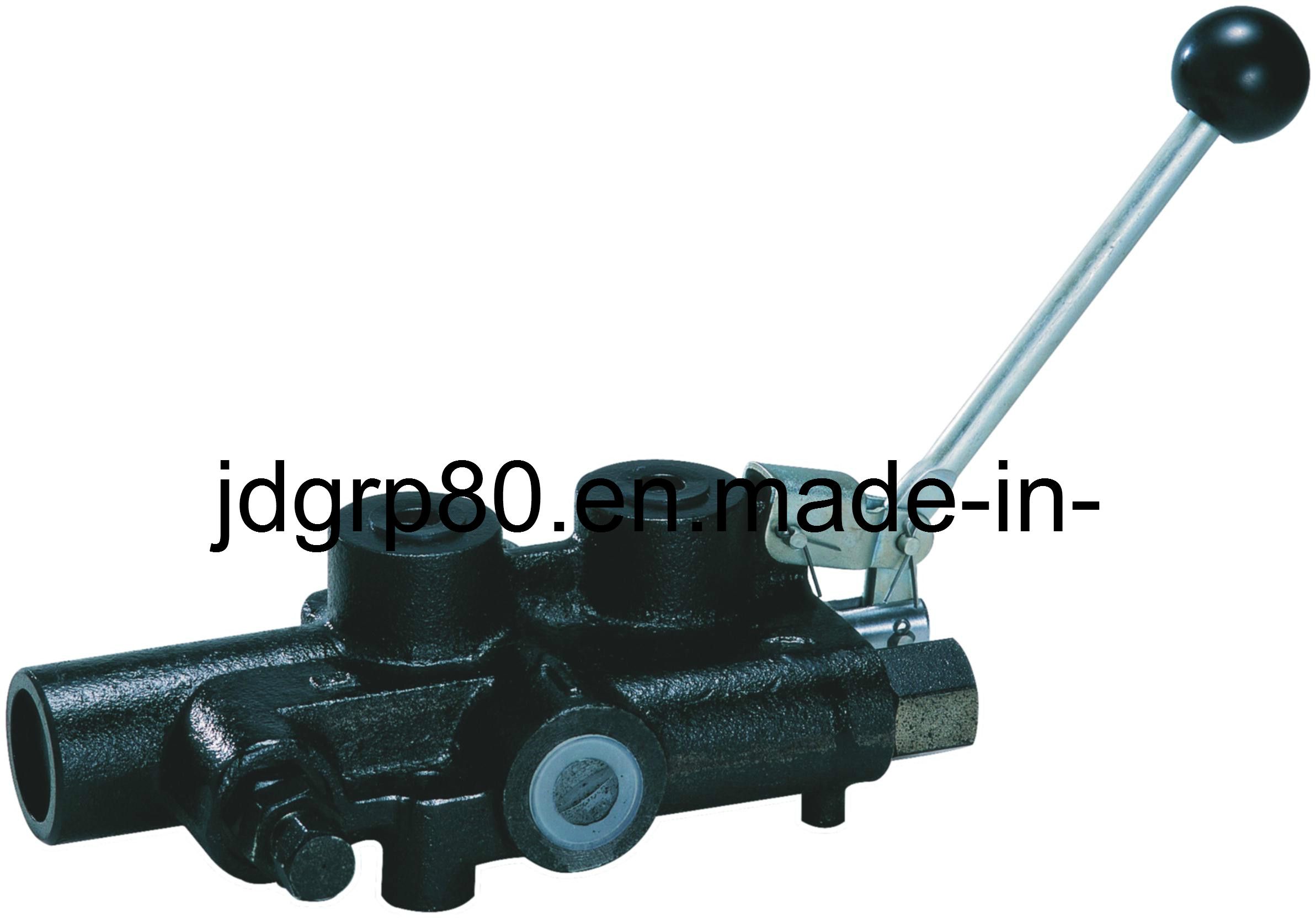

Brief: CY series manually operated directional valve is a direct type directional valve. It can be used to change the direction of hydraulic oil lines, allowing the spool to move in axial direction by adjusting the handle. It adopts ball positioner or spring as restoring device.
Specifications:
Pressure rating
Maximum design and text pressure...2750PSI
Capacity
Nominal Flow...25GPM
Maximum Operating Temperature...180 º C
Filtration Required(min)...10 micrometre
Maximum Tank Pressure...500PSI
Relief Valve Setting...2250PSI
(All reliefs are set at 3gpm and 120 º C )
Detent Release Pressure...1400PSI
Weight...10LBS
Standard Valves Available
Order code: CY-1
Work port size: 1/2NPTF
In/out port size: 3/4 NPTF
Order code: CY-2
Work port size: 3/4 NPTF
In/out port size: 3/4 NPTF
STANDARD FEATURES
The monoblock casting body of high tensile strength ductile iron
Hydraulically balanced, hard chrome plated spool
In neutral position, both work ports blocked, pump unloaded to tank
Ideal for logsplitter applications. Available with 3/4"PTF work ports for higher flow applications
Sichuan Yuanju Machinery Co., Ltd. Has dedicated itself to manufacture a wide range of hydraulic cylinder covering tie rod cylinders, welded cylinders and custom-made cylinders. We have been supplying our cylinders to European and United State for many years with top quality and competitive price.
Our capacity:
SAE, NPT, NPTF, BSP, Ports available.
Custom-Made cylinders and components available
Cylinder Range:
Bore: 18mm - 800mm (0.75" ~24")
Stroke: 100mm - 8000mm. (4" ~315")
"quality first, customer foremost" is our goal. We expect to work with customers home and abroad to set up long term and win-win business!
