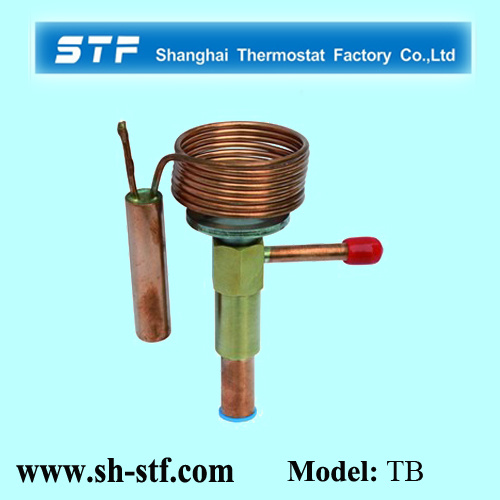

Low Pressure Brass Expansion Valve
General:
1. The model TB thermostatic expansion valve is a kind of thermostatic expansion valve with fixed valve port for automaticly supplying and regulating the refrigerant, which is suitable for small scale refrigeration system.
2. The powerhead is laser welded for long life.
3. Superheat (3.5K) is fixed.
4. ODF copper tube welding.
5. Suitable for Freon and hydrocarbons.
6. Maximum working pressure: 2.8 MPa.
| Model | Nominal capacity (kw) | Type of equalization | Connection size | Capillary
Length |
| R134a | R22 |
| TB-1 | 0.5 | 0.7 | Internal equalizated | ODF
Inlet1/4 orφ6
Outlet3/8\φ10 or 1/2\φ12 | 0.75m
Or 1m
Or 1.5m |
| TB-2 | 0.8 | 1.1 |
| TB-3 | 1.0 | 1.4 |
| TB-4 | 1.2 | 1.7 |
| TB-5 | 1.6 | 2.8 |
| TB-6 | 2.1 | 3 |
| TB-7 | 3.1 | 4.4 |
| TB-8 | 3.7 | 5.3 |
| TB-11 | 4.9 | 7 |
| TB-12 | 6.2 | 8.8 |
| TB-13 | 7.2 | 10.2 |
| TB-14 | 9 | 12.8 |
| TB-15 | 9.5 | 14 |
| TB-16 | 11.7 | 16.6 |
| TB6-01 | 12.4 | 17.6 | Internal equalizated | Inlet:3/8\1/2 or φ10\φ12
Inlet:5/8\3/4\7/8 or φ16\φ19\φ22 | 1m
Or 1.5m |
| TB6-02 | 14.9 | 21.12 |
| TB6-03 | 18.8 | 26.64 |
| TB6-04 | 19.8 | 28.16 |
