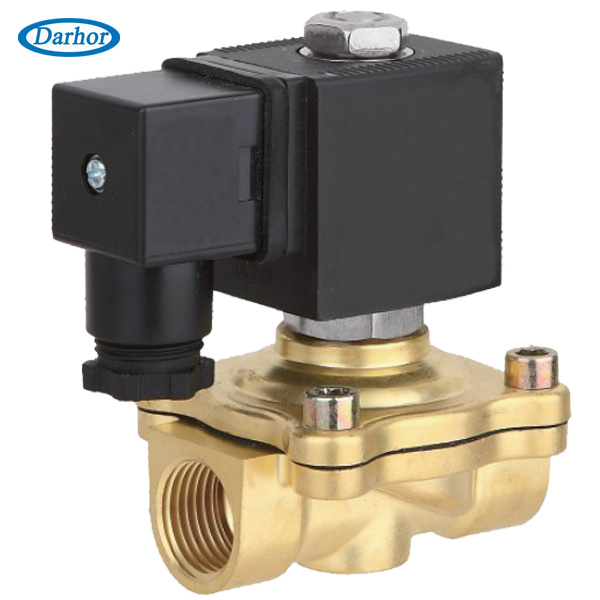

ZCM11 Series Diaphragm Direct Lifting, Normally Closed
Characteristic:
1. Direct lifting diaphragm construction with high frequency
2. High speed to open and close
3. Applied to gas
Medium: Civil gas
Temperature:
NBR Seal: 14F to 176F, -10 to 80
EPDM Seal: 14F to 250F, -10 to 120
VITON Seal: 14F to 300F, 10 to 150
Pressure: ZCM: 0 ~ 10 bar
Port Size: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Port Thread: BSPP, BSPT, NPT, Flange
Orifice (mm): 15, 20, 25, 32, 40, 50
Voltage:
DC - 12V, 24V
AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Tolerance: +/- 10%
Coils:
S51B, 40VA (AC), 30W (DC), IP65, 100%ED
SD001B, 35VA (AC), 30W (DC), IP65, 100%ED
Material:
Body - Brass
Seal -VITON, EPDM. NBR
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
|
Port Size |
Orifice |
Cv |
Min Pressure(bar) |
Max Pressure(bar) |
Valve Body |
Coil |
|
|
|
|
|
AC(40VA) |
DC(30W) |
|
|
|
1/2" |
15 |
4.8 |
0 |
4 |
4 |
ZCM1115 X X X |
S91B |
|
3/4" |
20 |
8.6 |
0 |
4 |
4 |
ZCM1120 X X X |
S91B |
|
1" |
25 |
12 |
0 |
4 |
4 |
ZCM1125 X X X |
S91B |
|
1 1/4" |
32 |
24 |
0 |
4 |
4 |
ZCM1132 X X X |
SD01B |
|
1 1/2" |
40 |
29 |
0 |
4 |
4 |
ZCM1140 X X X |
SD01B |
|
2" |
50 |
48 |
0 |
4 |
4 |
ZCM1150 X X X |
SD01B |
