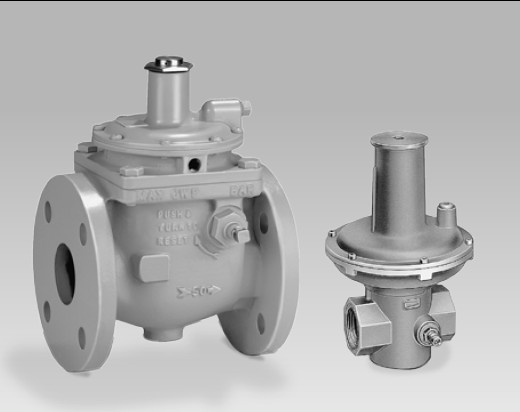

Low Pressure Relief Valve

Low Pressure Relief Valve
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C,T/T
Senses excess pressure downstream of pressure regualtor
Broad adjusting range for the response pressure
Low pressure loss

Application:
JSAV is used for the protection against high pressure for all valve connected downstream of a gas regulator. The gas supply is shut off if the downstream pressure exceeds spring set point of over pressure shut off valve.
VSBV is a safety relief valve designed to reduce temporary pressure surges
Downstream of the pressure reducing regulator caused by fluctuations in system
Operation.

Gas pressure regulating system should be assembled with a safety over pressure slam shut off valve (JSAV) upstream of the regulator and safety relief valve (VSBV). These safety valves are not required if the highest possible operation pressure of the regulator does not exceed the maximum permissible operating pressure of all devices connected downstream of the regulator.
Operating Limits
Type of Gas: Nature gas, clean coke oven gas and LPG
Ambient temperature range: 5° F to 140° F (-15° C to 60° C)
Maximum inlet pressure: 60 psig (4 bar)
JSAV response pressure: 8" WC to 8.0 psig (18 to 550 mbar)
JSAV factory setting: 1.7 psig (110 mbar)
VSBV response pressure: 8" WC to 7.0 psig (20 to 500 mbar)
VSBV factory setting: 1.43 psig (100 mbar)

Materials of constructionL:
JSAV and VSBV regulators have pressure die-cast aluminium alloy bodies and diaphragm housings. Diaphragms are nitrile rubber, and valve discs have vulcanized nitrile rubber seals. Valve stems and valve
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wuxi clarence international trading Co., Ltd, is a high-tech company specializing in international market, research and development of various kinds of metallurgical heat treatment equipment (Cover the non-ferrous and ferrous metal industry), company use science and technology as the guide, gather various talents in the industry, introduce and absorb the latest international technology idea for design and manufacture, professional design, produce various kinds of metallurgical heat treatment automatic production line, large gas furnace. We are already provide many complete sets of production line to the international market.

The main product of the company:

Industrial furnace: Heating or heat treatment walking beam furnace, Pusher furnace, Soaking furnace, Tunnel furnace, Chamber furnace, Protective atmosphere furnace, Electric muffle furnace, Steel pipe walking beam tempering production line, Steel pipe bright heat treatment furnace, Spheroidizing furnace, Plate normalizing furnace, Aluminum melting furnace, Round heating furnace, Trolley furnace, Bell-type bright annealing furnace, Roasting furnace, Carburizing furnace, Nitriding furnace, Multi-purpose furnace, Roller hearth furnace, Mesh belt furnace, Roller furnace, Bell type furnace, Rotary hearth furnace, Pit type furnace, etc.

Plate processing:

Cold rolling production line, Hot-DIP galvanizing production line, Galvalume production line, Annealing production line, Color coating production line, Hot-DIP tinning production line, Tension leveling production line, Slitting production line, Pickling production line, Degreasing production line, Galvanized structural parts production line, Automation control systems.

Pipe processing:

Perforation unit, Straightening Machine, Crosscut unit, Slitting machine, Cold bed

Company produces various types of gas, oil conventional burner, Regenerative burner, Efficient self-preheating burner, all kinds of special valves, Intelligent dynamic atmosphere control device and electrical automation control system, Software development, all has the international advanced level, due to its excellent value for money, it has been the adoption choice by many design institutes and professional company, it has become a well-know product.

The company also employed a number of old experts from the metallurgical enterprises engaged in technical work that has long term experience in this industry, involved in the management of the company's production, to ensure the quality of our projects and to maximize the economic benefits.

We warmly welcome friends from all over the world making cooperate progress with us
