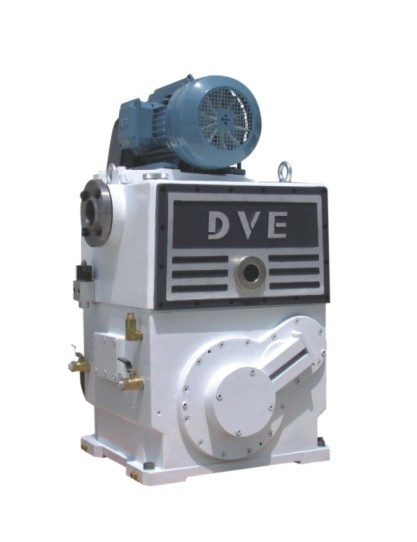

Rotary Piston Vacuum Pump
Sino-US technical cooperation
The highly complete varieties of Rotary Piston Vacuum Pumps
Seriated design, specialized manufacture, high cost performance
Advanced structure, excellent performance, easy to use, high reliability and durability
Best-selling for domestic and overseas: United States , Germany , Korea , Canada , Finland , lran, Austria , Russia and Taiwan etc.
APPLICATIONS:
Widely used in production and development of new materials,new technologies and new process for vacuum crystal pulling,vacuum coating,vacuum metallurgy, vacuum heat treatment,vacuum impregnation,vacuum drying, vacuum disillation,vacuum kneading,aerospace simulation experiments.
Rotary Piston Vacuum Pump can not only be operated independently, but also be a backing pump when combined with Roots Vacuum Pump, Oil Boater Pump, Oil Diffusion Pump,The pump must be fitted with appropriate accessories if the exhausted gas is corrosive to ferrous metal,reactive with vacuum pump oil,or rich in vapor and dust.
PARAMETERS
Model | Displacement | Ultimate partial Pressure(Pa) | Ultimate Total Pressure(Pa) | Motor Power(KW) | Suction(mm) | Discharge
(mm) | Cooling Water(15ºCkg/h) |
L/S CFM |
2H-15DV | 15 | 32 | 0.05 | 1 | 2.2,1.5 | 50 | 40 | 100 |
2H-15DVA | 15 | 32 | 0.05 | 1 | 2.2,1.5 | 50 | 40 | Air cooled |
2H-30DV | 30 | 65 | 0.05 | 1 | 4/3 | 63 | 50 | 200 |
2H-45DVA | 45 | 95 | 0.05 | 1 | 4 | 63 | 50 | Air cooled |
2H-50DV | 50 | 105 | 0.05 | 1 | 5.5 | 80 | 63 | 300 |
2H-70DV | 70 | 150 | 0.05 | 1 | 7.5 | 80 | 63 | 400 |
2H-80DV | 85 | 180 | 0.05 | 1 | 7.5 | 80 | 63 | 500 |
2H-100DV | 100 | 210 | 0.05 | 1 | 11 | 100 | 80 | 600 |
2H-120DV | 120 | 255 | 0.05 | 1 | 11 | 100 | 80 | 600 |
2H-150DV | 150 | 320 | 0.05 | 1 | 15 | 125 | 100 | 800 |
2H-160DV | 160 | 340 | 0.05 | 1 | 15 | 125 | 100 | 800 |
2H-220DV | 225 | 480 | 0.05 | 1 | 22 | 150 | 100 | 1200 |
2H-450DV | 450 | 950 | 0.05 | 1 | 45 | 200 | 150 | 2400 |
H-25DV | 25 | 52 | 0.5 | 3 | 2.2,1.5 | 50 | 40 | 100 |
H-25DVA | 25 | 52 | 0.5 | 3 | 2.2,1.5 | 50 | 40 | Air cooled |
H-50DV | 50 | 105 | 0.5 | 3 | 4/3 | 63 | 50 | 200 |
H-60DVA | 60 | 130 | 0.5 | 3 | 4 | 63 | 50 | Air cooled |
H-70DV | 70 | 150 | 0.5 | 3 | 5.5 | 80 | 63 | 300 |
H-100DV | 105 | 223 | 0.5 | 3 | 7.5 | 80 | 63 | 400 |
H-120DV | 120 | 255 | 0.5 | 3 | 7.5 | 80 | 63 | 500 |
H-150DV | 150 | 320 | 0.5 | 3 | 11 | 100 | 80 | 600 |
H-160DV | 160 | 340 | 0.5 | 3 | 11 | 100 | 80 | 600 |
H-220DV | 225 | 480 | 0.5 | 3 | 15 | 125 | 100 | 800 |
H-300DV | 300 | 635 | 0.5 | 3 | 22 | 150 | 100 | 1200 |
H-600DV | 600 | 1280 | 0.5 | 3 | 45 | 200 | 150 | 2400 |
H-150D | 150 | 320 | 0.5 | 3 | 15 | 100 | 80 | 700 |
H-150 | 150 | 320 | 1 | 6 | 15 | 150 | 80 | 700 |
H-8A | 150,180 | 320,380 | 1 | 6 | 18.5 | 150 | 80 | 700 |
Note:"Ultlmate Partlal Pressure"refers to Michael's vacuum gauge measuring the limit of partial pressure,"Ultimate Total Pressure"refers to full pressure vacuum gauges(such as thermal conductibity gauges)measuring vacuum degree.WE CAN PROVIDE YOU:
1. On-time Delivery, with More Choice
2. Perfect Technical Support
3. Customized Vacuum Solutions and Service
4. Samples Available
5. Long Quality Guarantee
6. Fast Response to Customers' Feedback in 12 hours
As a plant, we specialized in design and manufacture vacuum pumps, vacuum systems for more than 20 years.
Presently DVE products include Roots Vacuum Pump, Water Ring Vacuum Pump, RotaryVane Vacuum Pump, Dry Screw Vacuum Pump, All kinds of Vacuum Systems, Vacuum Stations, Vacuum Spare Parts and the most extensive ranges of rotary piston vacuum pumps in the world, which are widely used in electronics, electrical, metallurgy, coating, ceramics, pharmaceuticals, chemical, papermaking industry, vacuum heat treatment, vacuum drying and impregnation for transformer, freeze-drying, energy industry, aerospace, or other fields.
We are equiped with:
1 Professional R&D team
2 Complete & Advanced production Line
3 Efficient & Considerate after-sales service -Fast Response to Customers' Feedback in 12 hours
We can offer you:
1 Customized Vacuum Solutions
2 On-time Delivery
3 Perfect Technical Support
4 Ture One Year Warranty - If pumps appear quality problems, we assure you free replacements within one year.
DVE - Where high quality is standard, responsibility lies.
