Low Price High Quality LNG Tank
| Price: |
US $ 100-100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

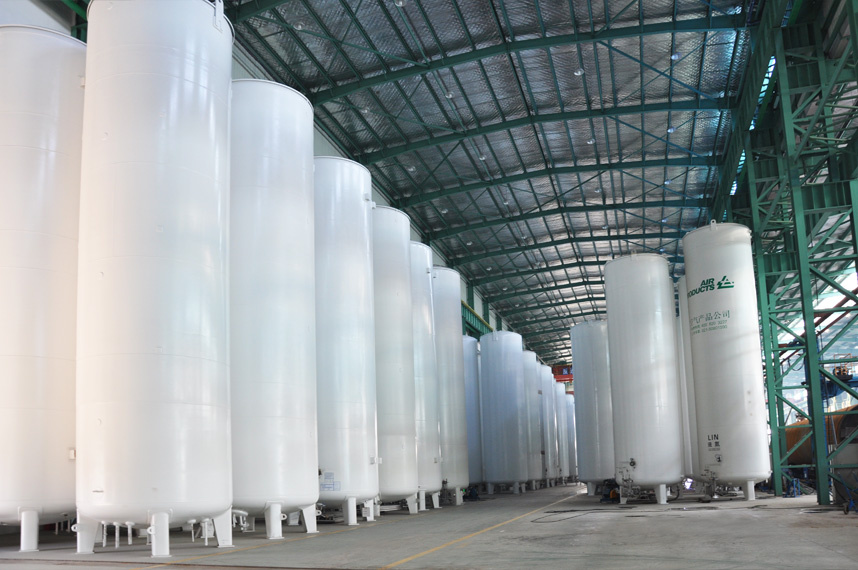

LNG storage tank is a device for liquefied natural gas, which is very strictly for the insulation and sealing. Shell is made of Q345, and the liner is made of 0Cr18Ni9Ti, filled in the middle of the perlite, double-layer insulation by vacuum powder insulation or multi-layer winding insulation.
We can provide imported or domestic valves for the tank.
Heat-insulating method is Perlite/High vacuum multilayer insulation. | Project | Unit | Parameter |
| Inner case | Outer case |
| Max Pressure | MPa | 1.2 | -0.1 |
| Geometric Volume | M3 | 30, 60 |
| Heat-insulating method |
| Perlite/High vacuum multilayer insulation |
| Structure form |
| Horizontal/Vertical |
| Medium |
| LNG |
| Sealing-off vacuum degree | Pa | <3 |
| Class |
| II |
| Design temperature | ºC | -196 | 60 |
| Working temperature | ºC | -162 | Ambient temperature |
| Filling rate | % | 90% |
| Static evaporation rate | %/d | <0.2 |
| Leak-out gassing rate | Pa. M3/s | <6x10-5 |
| Main material | Head |
| 06Cr19Ni10 | Q345R |
| Shell |
| 06Cr19Ni10 | Q345R |
| Welding coefficient |
| 1 | 0.85 |
| Prod Model: |
30m3, 60m3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Geometric Volume: |
30,60 M3 |
| Medium: |
LNG |
| Working Temperature: |
-162 Centigrade |
| Main Material: |
06cr19ni10 |
| Storage Medium: |
Moncombustible/Nontoxic |
| Pressure Level: |
Low Pressure (',0.1MPa≤p<1.6MPa) |
| Condition: |
New |
