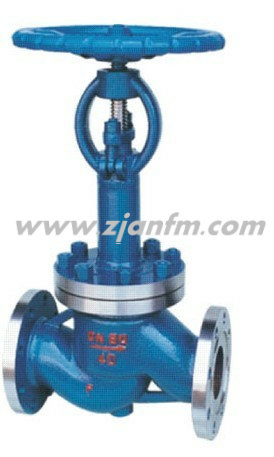

Low Temperature Globe Valves
| Price: |
Negotiable |
| Min Order: |
1 |
Specifications
Globe Valve
Size: 2" - 24"
Pressure: 150LB-2500LB
Design: BS1873, ASMEB16.34
Flange or BW ends
Cryogenic globe valve(Low Temperature globe valve/Steel globe valve)
Design Standard: BS 1873, ASME B16.34
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2501
Buttwelding Ends: ASME B16.25.
Inspection and Test: API 598.
Size: 2" ~ 24"(DN50 ~ DN600)
Rating: ANSI 150lb ~ 1500lb.
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.
Trim: Per API 600
Operation: Handwheel, Gear, Electric, Pneumatic, Hydraulic.
Design Features
Straight pattern body design
Tapered, globe, or plug disc
Renewable or welded seat
Bolted bonnet or pressure sealed bonnet, back seal structure
Impact handwheel for 10" and above
Extended stem design for low temperature
ISO top flange for Bare stem globe valve.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zhejiang Anneng Valve Co., Ltd. is a company with develop, exploitation, production and marketing of high-temperature high-voltage station valve. The company has advanced management mechanism and sophisticated equipment for machinery processing and examining, testing, advanced product structure, technical skills. Produce according to the Ministry of superscript, GB, the Industry Standard, and the United States, Japan, Germany, France and other countries standards.
Zhejiang Anneng Valve Co., Ltd. has always been able to reply on science and technology, continuous innovation and strict management system so that the company has set up a complete management system, Product sales, contracts, warehouse, financial, personnel efficiency of the whole company are closely united, guarantee the quality of the products strictly. The company's long-term goal is the company enters the information network, in-depth development of high temperature and high pressure valves and other valve products. The main products are valve, closing valves, Power Station Valve, ball valve, check valve, butterfly valve, the U. S. Standard valves, and other hundreds of different specifications. The main materials used WCB(A 105), WC9(F11), WC9(F22), LCB(ZGCr5Mo), ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L), CF7MC20full metal, MONEL, Titanium and so on, Driver forms are: Manual, electrical, pneumatic, (spur, bevel) gear, over-type worm gear and so on. Nominal diameter: DN10mm-1200mmNPS 1/8"-40" Nominal pressure: PN0.6MPa-42MPa API 150LB-2500LB: JIS 10K-63K: Operating temperature: -196° C-600° C; Applicable medium: Water, steam, oil, nitric acid, acetic acid type, the medium-oxidation, urea, oxygen, coal gas, liquid ammonia, ethylene oxide, methanol, Acrylic, propane and so on.
Zhejiang Anneng Valve uses the quality of management, production technology and services to ensure quality assurance, return the majority of uses love of the valves with sound reputation, uses business philosophy "Quality First, the user first" continue applies of new technologies, new processes, and actively develop quality products. Welcomed the new and old customers work together for a better tomorrow!
