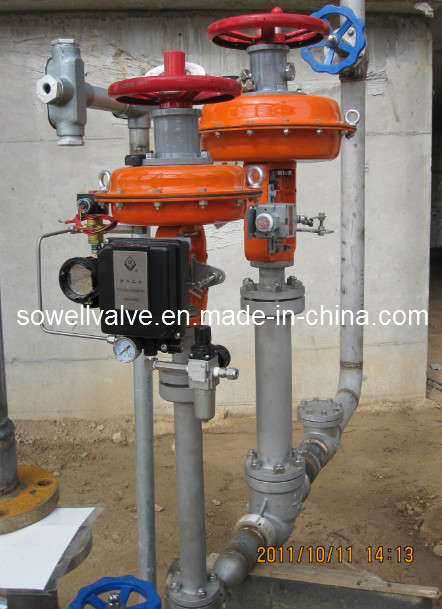

Low Tempreture Control Valve, specially designed for the circumstances that require a tight shut-down in low temperature, is ideally suitable for media of low temperature such as liquid oxygen and liquid nitrogen with multifunction and reliability with low cost.
Thinktank type pneumatic diaphragm single seat regulator is the the most commonly used actuator in automatic control system, it is composed by pneumatic diaphragm actuator and low flow resistance regulator. Single seat is applicable to occasions that is strict for leakage, low pressure differential around valve and has a certain viscosity and contain fiber medium, Two seat valve has small unbalanced force, large allowed pressure differential, large flow capacity and other characteristics. It is applicable to occasions that is not strict for leakage, sleeve valve has good stability, not easily vibration, low noise, small temperature sensitivity, is applicable to large pressure differential and not strict for leakage occasions.
|
DN(mm) |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
rated flow coefficient Kv |
8 |
12 |
20 |
32 |
50 |
80 |
120 |
200 |
280 |
450 |
|
PN MPa |
1.6 \ 4.0 \ 6.4 (normal temperature ); 4.0 \ 6.4 ( mesotherm type) |
|
medium temperature |
-20 ~ 200( normal temperature); -40 ~ 450(mesotherm type ) |
|
flow characteristic |
linear, equal percentage |
|
body material |
welding high-temperature carbon stell cast steel GB/T12229-1989 ZG270-500; JIS SCPH2 |
|
core, stem material |
SS 1Cr18Ni9Ti |
|
adjustable ratio |
30: 1 |
|
adjustable spares |
Flameproof electrical-peumatic valve locator and handwheel devices, air filter relief-pressure valve |
Shanghai ThinkTank Process Management Co., Ltd. is the sole production and R&D institute of Taiwan STONE Company in Mainland China. ThinkTank entered Chinese market in 2002 and moved from Hangzhou to Shanghai headquarter in 2012. Based on over 30 years experience in researching and manufacturing automatic instruments, brining in overseas advanced technology and combining domestic users real working situation, ThinkTank is specialized in producing new typed self-regulating valves, control valves and various kinds of automatic instruments. ThinkTank's business includes engineering projects such as electricity, metallurgy, petrochemical processing, light industry and building materials, municipal water service and natural gas.
Enterprise history
1985.08 Taiwan STONE company was established in Taipei city.
1990.02 Sales network covered Southeast Asia.
2002.06 Branch office was fund in Hangzhou, Zhejiang, handling all business in China
2012.10 Mainland head office was moved to Pudong, Shanghai
Shanghai ThinkTank Process Management Co., Ltd. Has a professional team works for control valves design and engineering application. ThinkTank develops a series of hi-tech products after absorbing overseas advanced technology and innovating.
*New self-regulating, micro pressure, differential pressure, flow, temperature control valve
*New pneumatic (electric) linear actuator (low dB, high pressure) control valve
*Pneumatic (electric) rotary actuator (O/V ball, butterfly) control valve
*Pneumatic (electric) special corrosion resisting control valve
Shanghai ThinkTank Process Management Co., Ltd sticks to the policy of "client oriented, quality comes first, and faith is root". Depending on many years experience on engineering application in various industries, ThinkTank provide clients with good, reliable full service, focusing on maximizing the rate of return on investment for clients.
