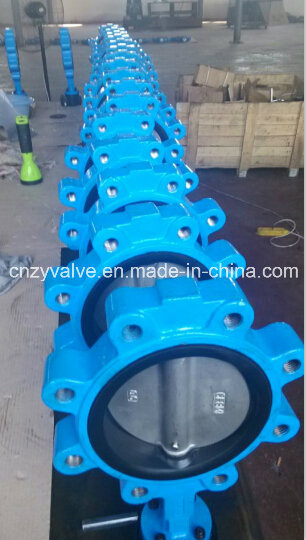

Lug Butterfly Valve Class150 with Trim EPDM Lining, SUS304 Stem
| Price: |
US $ 120/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
GENERAL SPECIFICATIONS:
Standards:
Design standard: API609
Face to face standard: ANSI B16.10
Flange according to ANSI B16.10
Material:
Body material: Ductile iron /cast iron/WCB/CF8/CF8M
Disc: DI/rubber lined disc/CF8
Stem: Ss316/ss304/ss416
Seat: NBR/EPDM/PTFE
Norminal diameter: DN50-DN300MM
Norminal presure: 200/250/300PSI
Operational temperature: -10° C-120° C
Suitable medium: Water, sewage, seawater,
Operated way: Lever, gear box, pneumatic, electric
Characteristics:
| worm gear lugged butterfly valve |
| Size: | DN50-DN600 |
| End flange: | ANSI B 16.1, EN 1092, AS 2129 |
| Face to face: | ANSI B 16.10 |
| Top flange: | ISO 5211 |
| Normal pressure: | PN1.0/1.6MPa(150/200PSI) |
| Body: | CI/DI/WCB/ALB/CF8/CF8M |
| Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
| Stem: | 416/304/431/17-4PH |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDMPTFE |
| Suitable temperature: | -25~120 |
| Medium: | Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
| Prod Model: |
D371X-150LB-6" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Lug Support |
| Structure: |
Single-Eccentric Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Household Usage |
China zhongya valve Co., Ltd. is a collection research and development, manufacturing, sales and integrated high-tech enterprises. The company is located in NO. 3511 Yongqiang Avenue Longwan District Wenzhou city Zhejiang China...The company introduces advanced technology from abroad, the modern scale production, and equips Germany processing center, Taiwan CNC machine, super precision vertical lathe, automatic painting line and special equipment, machining center, CNC machine tools, special molding, slinging cleaning, passivation treatment, ultrasonic cleaning equipment and a variety of valve pressure testing equipments. As well as equipped with photoelectric direct reading analyzer, thickness tester, radiographic, ultrasonic and liquid penetrant ect, non-destructive testing equipment to ensure that the company's products can be manufactured strictly in accordance with clients'requirements of related standard, to meet the different demands of them.
The company mainly in producing gate valve, globe valve, ball valve, check valve, butterfly valve, hydraulic control valve, supply and drainage water equipment and a variety of special non-standard special valves.
The company implements API (USA) and EN (European Union), ISO (international organization for standardization), BS (British), JIS (Japan) and GB (China) and other major advanced industrial countries and the latest standards of the national standard designing production. Valve body materials are used of carbon steel, alloy steel, chrome molybdenum steel, stainless steel, low-temperature steel, high-temperature steel, nickel base and cobalt base alloy and other materials, and materials specified by the user. Products are widely used in petroleum, chemical, natural gas, coal chemical industry, electric power, shipbuilding, pharmaceutical, paper making, beer industry, food, building, water supply, prevent pollution, and a large number of them are exported to the United States, Europe, Russia, Middle East, Japan, South Korea and southeast Asia and other regions.
