Product Description

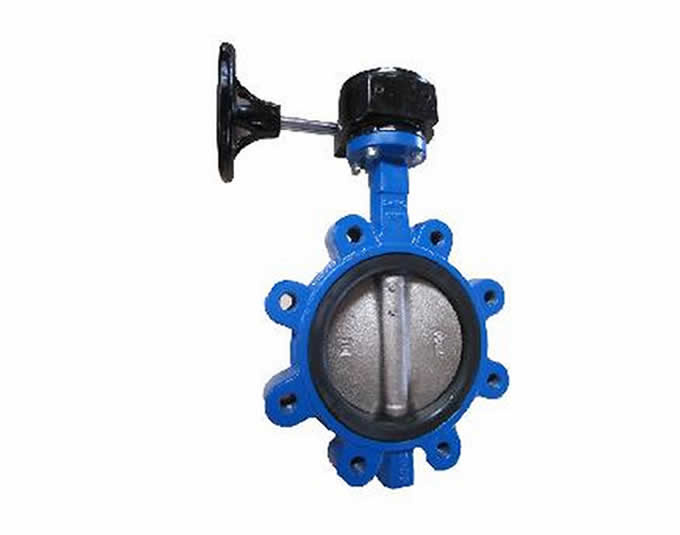

Manual Gear operated Lug type Butterfly Valve
Size DN50-DN1200
End flange ANSI B 16.1, EN 1092, AS 2129
Face to face EN558-1
Top flange ISO 5211
Normal pressure PN1.0/1.6/2.5MPa (150/300PSI)
Body Cast Iron / Ductile Iron / WCB / SS disc-DI / CF8 / CF8M / C95400
Disc: DI/ALB/ CF8M/CF8/Hastelloy
Stem :SS416/304/316/431/17-4PH
Seat: Hypalon/EPDM/Neoprene/NBR/Viton/Silicon/EPDM/PTFE
Temprature -45c~150c
Feature Small in size, light in weight and easy maintenance, it can be used as a device to cut-off or regulate
Apply Fresh water, sewage, sea water, air, vapor, food, medicine, oils. acids, alkalis, salt etc.
Features:
Available in various materials
Long service life with reliable seal and without frequent maintenance
Resilient seat design with bubble tight seal
Small size and lightweight
Easy to install and maintain
Easy to operate
Pressure test conforms to API598
Can regulate or cut off pipeline flow
Tianjin Tanggu tianshun valve Industries Limited is located in China's largest production base of the valve; High - Tech Development Zone, Tanggu District, Tianjin Marine, was professional design and manufacture all kinds of butterfly valves Factory production ( ISO9002 certification ), the annual production capacity of 150, 000 sets. The company's wafer butterfly valve, butterfly valve, Flanged butterfly valves are exported to Europe, Africa, Middle East and Southeast Asian countries and regions, special don't be eco - friendly nylon coating, the company developed and produced series of PTFE coating, anti-corrosion butterfly valve, gathered at home and abroad advanced - pin connection technology, spray technology, with the sealing property is reliable (No leaks ), corrosion resistance and high temperature resistant, non-toxic, harmless, operating torque features of small, safe and reliable running, was praised by users at home and abroad.
