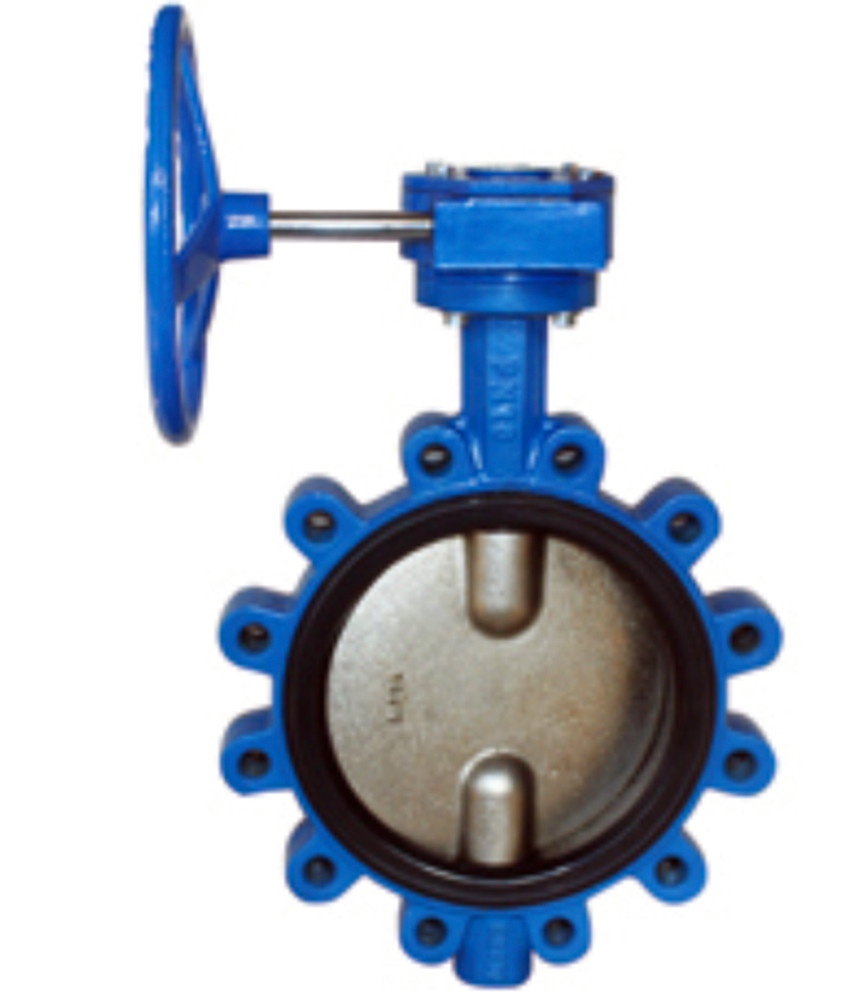

Lug Type Butterfly Valve with Double Axis - Gear Box

Lug Type Butterfly Valve with Double Axis - Gear Box
Price: US $ 1-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Lug Type Butterfly Valve With Double Axis

1. Size: DN50-500;

2. Body: Cast iron/Ductile iron/Stainless steel/Cast Steel;

3. Disc: Ductile iron/Stainless steel/Aluminum Bronze;

4. Stem: Stainless Steel

5. Seat: EPDM/NBR/VITON

Brief introduction of lug type butterflt valve with double axis

1. Lug type butterfly valve designed to comply with MSS-SP-67, BS 5155 and API609. Compatible with GB, DIN, BS, ANSI125/150 flanges.

2. Face to face according to ISO5752.

3. The seat of double axis butterfly valve is designed in to without back, the touque-and-groove seat is lower torque and replaceable.

4. There is O-ring casted on the seal surface of the seat, negates need for flange gaskets.

5. Available in wafer type and lug type.

6. Available with handles, manual gear operators and electric or pneumatic actuators.

More information about wafer type spline butterfly valve.

Our butterfly valve conform to the international standard like GB, ANSI/API, DIN, BS as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. Butterfly valves are widely sold in America, Germany, UK, Italy, Spin, Holland, Sweden, United Arab Emirates, Singapore etc.
Detailed Description of butterfly valve
Series: lug type butterfly valve with double axis
Design Standard: API609/ISO5752
Size: DN50-500
Flange: PN6, PN10, PN16, PN25, ANSI150, ANSI125, JIS 10K, TABLE" D" , TABLE" E"
Face to face: ISO 5752
Body: Cast Iron/Ductile Iron/Stainless Steel
Disc: Ductile Iron/Ni-plated ductile iron/Stainless steel/Al-Bronze
Stem: Zine Plated Steel/ Stainless Steel
Seat: EPDM/NBR/PTTE
Application: petroleum, chemical industry, water and electricity, foodstuff, medicament, light textile, paper making, metallurgy etc.
Certification: ISO9001: 2008, CE, SGS

Prod Model: Lug Type Butterfly Valve - gear box
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue, Red or as Per Clients' Requirement
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Lug Support
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Water Industrial Usage
AFCON Ningjin Yahua Industries Co., Ltd. is a manufacturer specialized in design and manufacture industrial valves. It can produce more than 300 specifications, 10 categories, for example wafer type butterfly valve, flanged butterfly valve, eccentric butterfly valve, high-performance butterfly valve, check valve, ball valve, rubber wedge gate valve, Y-type strainer and pipefittings.

In 1999 the company established its own pipefitting research center. The factory has more than 30 engineers including 10 senior engineers, 2 American experts. It can design, manufacture and test the valves according to international standard such as ANSI, BS, DIN and national standards, and It also can meet customers requirement.

The company have many authentication such as ISO9001: 2000 EC's PED, CE, Germany TRD100/WO Material, Norwegian DNV Classification Society Factory as well as British LR, and ltalian RINA product. Also it set up its own quality contral and assurance system so the product can reached many countries and regions, such as the United States, Britain, German, Italy, France, Spain, Hong Kong and so on.

Meeting your requirements is always our mission. We will do our best to meet all with first-class quality, competitive price and best delivery.
