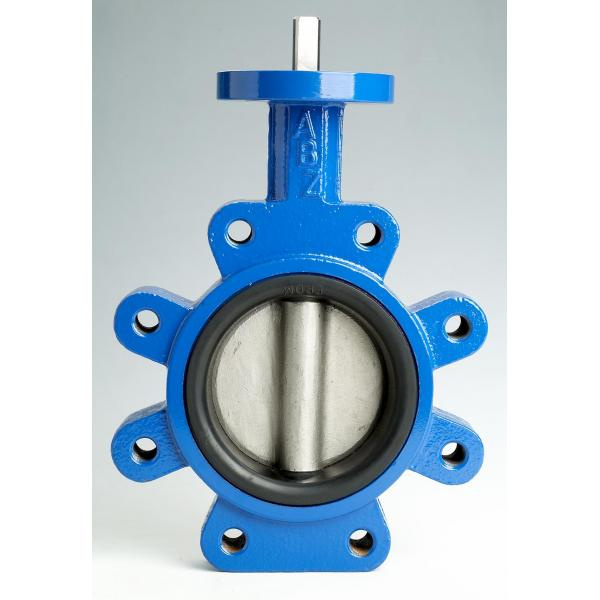

Lug Type Butterfly Valve with Pin

Lug Type Butterfly Valve with Pin
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: T/T
Lug type butterfly valve with pin Size: 1 1/2"~24" Rating: PN10 PN16 Class 125/150 /5K 10K Material: Body: Cast iron/ductile iron disc: DI /304/316 Face to face: ISO5752 /API 609/DIN 3202 Flange: AS2129 table D/Table E /ASME B16.1 125# /ASME 16.42 class 150/BS 4504 /BS10 /DIN2501/ISO 7005-2 JIS 2220 1.material of part : body: ? Cast iron ?ASTM A 126 CL.B/GG25 Ductile iron ?ASTM A 536 65-45-12/GGG40 Stainless steel ASTM A 351 CF8 CF8M Carbon steel ASTM A216 WCB Disc: Ductile iron ?ASTM A 536 65-45-12/ GGG40 Stainless steel ASTM A 351 CF8 CF8M Carbon steel ASTM A 216 WCB Bronze ?ASTM B 148 C 954 Coated ?NYLON/PTFE Stem: Stainless steel ASTM A182 410 416 420 431 304 316 Alloy ?Monel k500 Seat: EPDM ? ?-15 degree~+140 degree NBR ? ? ?-10 degree~+80 degree VITON ? -20 degree~+150 degree PTFE ? ?-15 degree~+120 degree Bushing: PTFE Bronze Taper Pin: Stainless steel ASTM A 182 410 416 420 431 304 316 Alloy ?Monel k 500 o-ring: EPDM NBR VITON 2. Face to Face standard ISO 5752 API 609 DIN 3202 3. Flange Drilled?standard AS 2129 Table D/Table E ASME B 16.1 Class 125& ASME B 16.42 Class 150 BS 4504 PN 10 / PN 16 BS 10?Table D/Table E DIN 2501 PN 10/ PN 16 ISO7005-2?PN 10/ PN 16 JIS 2220 5 K /10 K 4.Pressure Test : Nominal Pressure ? ?1.0 Mpa /1.6 Mpa Shell Test Pressure ?1.5 Mpa /2.4 Mpa Seal Test Pressure ? 1.1 Mpa/1.76 Mpa
Prod Model: BV-LT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1 1/2"~24"
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Flange
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Household Usage
LIANKE, since the foundation in year 1999, has been a leading designdevelopment supply valves company. The main products include Ball Valve, Butterfly Valve, Gate Valve, Globe Valve, Check Valve, Kamlock and Pipe Fitting, export to 35 countries and regions. They are widely used in chemical, petrochemical petroleum. Petroleum. Oil and gas pharmacy. Marine etc industries.

Our customers have responded positively and they have come to rely on our products'high quality services competitive price and fast deliver time. As usual we control some stock for the fasting deliver.

Our mission is Quality first, Customer highest, service first-rate. Every customer is of great importance for Ossp valve. We are committed to serve our customers with advanced ideas elaborated planning, efficient management and reliable service. To service our customers wholeheartedly is not just a slogan, but the most important issue of our enterprise behavior. With your support, ossp valve will continue to guarantee excellence in the future.
