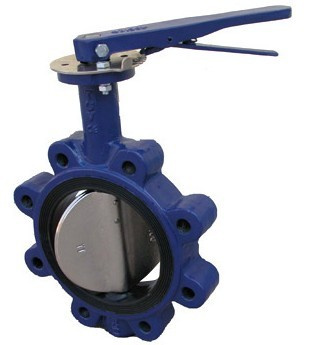

Lug Type Buttefly Valve
Model: BV2000L
Size: DN40 to DN300
Body: CI DI
Disc: DI SS Aluminum bronze
Stem: SS (One Piece without Pin)
Seat: NBR EPDM VITON
Working Pressure: PN6 PN10 PN16
SIZE:DN50-DN300
End Flange:DIN,BS,UNI,ISO,ANSI,AS,JIS
Face to Face:API609,BS5155,DIN3202,ISO5752
Top Flange:ISO 5211
Normal Pressure:PN1.0/1.6Mpa(150/200PSI)
Body:Cast Iron/Ductile Iron/WCB/ALB/CF8/CF8M
Disc:Ductile Iron/ALB/CF8M/CF8/Hastelloy Alloy/Monel
Stem:SS416/304/316/431
Seat:Hypalon/EPDM/Neoprene/NBR/Viton/Silicon/Heat-Resistant EPDM/White NBR/PTFE
Suitable Temperature:-45C to 150ºC
Suitable media include water, sewage, sea water, air, foodstuff and oil.
They are suitable for handles, gear operators, electric and pneumatic control actuators
Tianbang is specialized in industrial valves, water supply and drainage equipment research and development, production, manufacture and sales of integrated enterprise. Leading products include: Forged steel valve, forged steel valve, forged steel check valves, forged steel ball valve forged steel valve products are widely used in petroleum, chemical, fertilizer, metallurgy, pharmaceutical, power, mining, water supply and drainage and supply heat and other industries. Products sold in major medium-sized enterprises, and to explore the international market, users get widespread praise and trust, and dedication to provide customers with pre-sale and after-sale service.
Professional, fine, high-quality day state of the valve is based on the book, survive; Sake of customers from the small office is our service philosophy. In the future increasingly competitive global market competition, we always follow the "quality first, customer first, excellence, and strive to develop, research and innovation, " the quality policy; Adhere to the "loyal, hard-working, enterprising" culture; Adhere to the "quality, the pursuit of economies of scale "approach to build brands, stronger, bigger. With a good reputation sincere service to repay the majority of users love, and sincerely hope to cooperate with customers to create brilliant.
