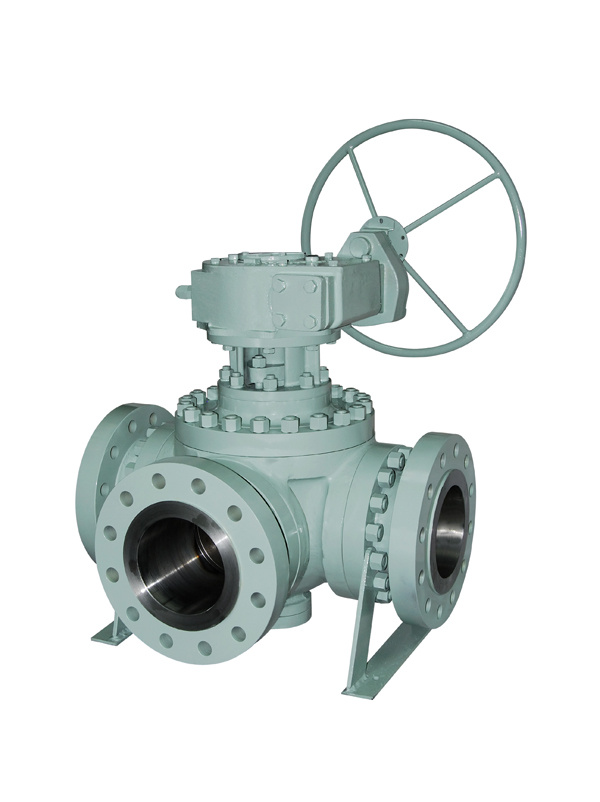

Lug Type Worm Gearing Three Way Ball Valve

Lug Type Worm Gearing Three Way Ball Valve
Price: US $ 10/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

1. Three Way Ball Valve Material:
* ASTM A216 WCB
  A351 CF8, CF8M, CF3, CF3M, CF3MN, CN7M
  A890 4A
  A352 LCB

2. Three Way Ball Valve Pressure rating and size:
* API, ANSI, ASME, MSS, BS, DIN, JIS
* 150#~300# : 2"~16"

3. Three Way Ball Valve Features:
* Design - API 608/ API 6D/ BS5351/ ANSI B16.34/ ISO 14313/MSS SP 72
* Face to Face & End to End - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ISO7005-1/ API 605/ BS 3293/ DIN
* Fire Safe - API 607/ API 6FA
* Test - API 598
* Seat - PTFE/ RPTFE/ Graphite/ VITON/ Metal to Metal
* Fabrication - Two Pieces/ Three Pieces Body

4. Three Way Ball Valve Applications:
* Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.

5. Three Way Ball Valve Structure:
* L bore type/ T bore type.
* Floating ball
* Soft seal or metal sealing

6. Three Way Ball Valve Temperature rating:
* -45°C - + 650 °C or above

7. Three Way Ball Valve Operators and option:
* Pneumatic / Electric/ Worm Gear/ Locking Device/ Lever etc.

8. Three Way Ball Valve CERTIFICATES :
* API 6D, API 6FA, CE, ISO 9001

9.The main material to choose from :
PartsMaterial
Body&Bonnet
WCB,LCB,LF2,CF8,CF8M,A105,A105N,F304,F304L,
F316,F316L,Hastelloy C,Alloy Steel,Titanium

Ball
WCB,F304,F316,LF2,A105,A105+ENP,LF2+ENP
StemF6a,304,316
SeatA105,F304,F316,PTFE,RTPFE,VITON,NYLON,NBR
Prod Model: Q341H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2" - 16"
Standard Or Nonstandard: Standard
Certificate: ISO9001, CE, RoHS
Delivery Time: in 45days
Warranty: 12months
Connection Form: Flange
Channel: Tee Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Alloy
Application: Household Usage
BIKVALVE company specializes in the production of ball valves, butterfly valves, check valves, globe valves and other valves. In the field of valves, company Poke has a rich design and production experience. All products pass through special processing equipment and meets international standards of reliability and safety. The company already has fifteen years of experience, provides customers with design solutions in various areas such as oil, chemical, gas and other fields of industry. One priority advantage of the company bikvalve is the extension of the partnership not only with China, but also with foreign countries. Our products have reasonable prices, while providing our customers with the highest quality products. The company has the possibility of fast delivery of goods.

We are able to quickly fulfill the requirements and desires of the customer! We are very glad to offer the services to meet the requirements of our clients!
