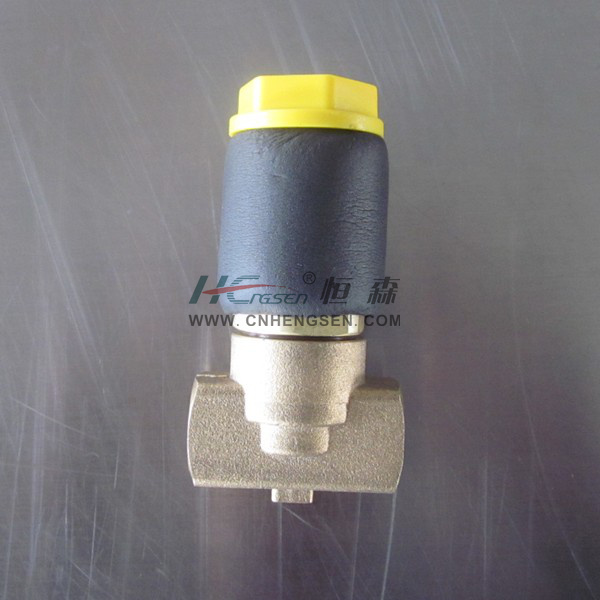

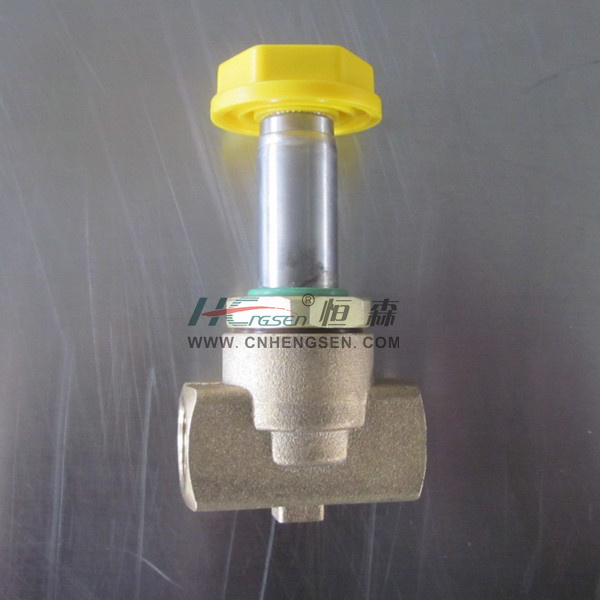

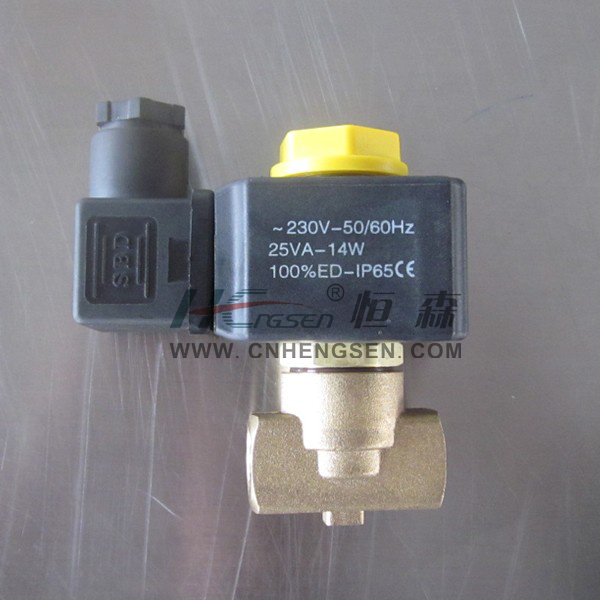

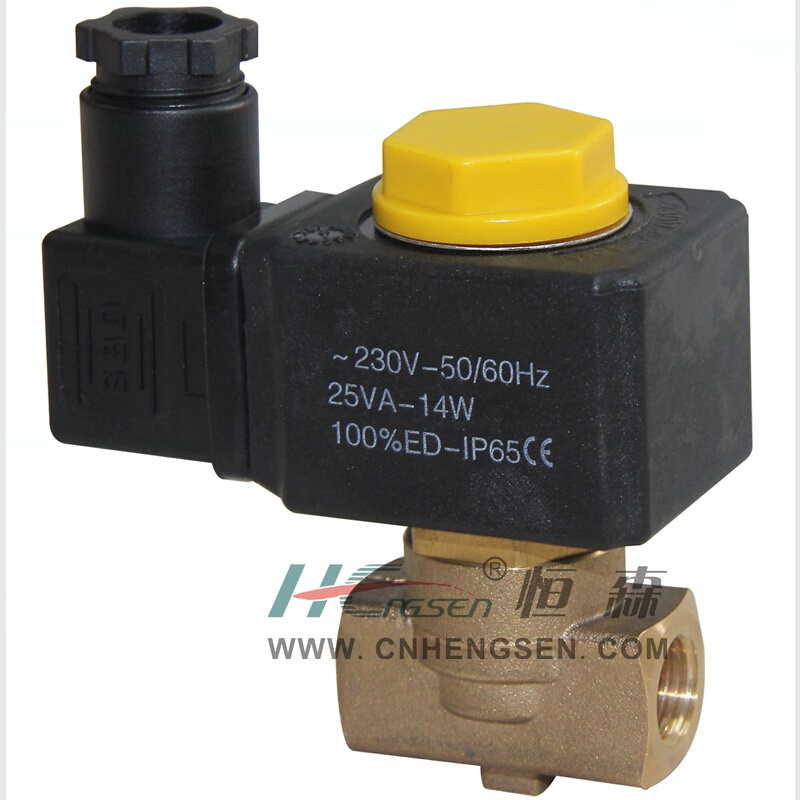

M20B3 Solenoid valve 1/4"BSP/normally closed solenoid valve/direct operation solenoind valve/water solenoid valve/air solenoid valve/oil solenoid valve
M20B3 Solenoid valve suitable for water,air,oil,inert gases and other fluids
non-corrosive for copper alloys,with viscosity up to 2°EnglerInstallation and operationNormally-Closed 2 way valve
Direct activation
Female end connection,Size 1/4"BSP
Energized coil opens the plug
Electrical SpecificationsClosing Time: 10msec
Press-forged brass body
Internal parts in stainless steel(17% CR)
Gaskets in Viton(fluoroelastomer)
Fluid temperature:-10 to +140ºC
With dc coil indicated pressure values must be reduced by 60%
Model: M20B3-1/4"Through bore dia.Φ 3 mm
Female connection 1/4"BSP
KVs 0.27m³/h
Minimum differential pressure 0 bar
Maximum differential pressure with coil Vn 16bar
Test pressure(DIN2401) PN 25bar
Working Temperature -10 to 140ºC
Unit Weight 0.34kg
Coil for chooseC230A: 230VAC
C110A: 110VAC
C24A: 24VAC
C24D: 24VDC
