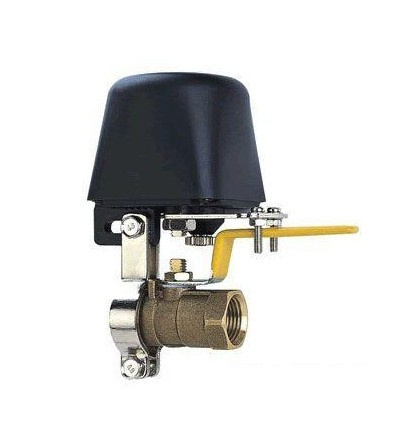

This manipulator is manufactured specially to work with gas alarm. It is applicable to the ducting gas ball valve with no need of modification to the design configuration of the gas ductwork(new or old).
FEATURES:
1) DC 12V, 24V Safety vVltage
2) Case with Insulation, Seal and Flame Retardation
3) Anti-Electromagnetic Interference and No Spark Design.
4) Close the Entry Main Valve Automatically, Completely Cutting Off the Air Source
5) Both Electrically Driven or Manually Driven
6) Three Dimension Bracket Optional (1/2Inch, 3/4Inch or 1Inch)
7) Large Torque for New or Old Gas Ball Valves
8) With Auto-Manual Shift Clutch
TECHNICAL SPECIFICATIONS:
1) Rated Voltage: 12V DC
2) Operating Voltage: 6-18V DC
3) Rated Current: 100mA
4) Operating Current: 20~1000mA
5) Working Temperature: -10° C~+50° C
6) Humidity: <95%
7) Valve Pressure: 1.6Mpa
8) Valve Specifications: 4", 6", 1Inch, 1.25Inch, 1.5Inch
9) Automatic Valve-Closing Time: 5-10s
10) Electric Valve-Opening Time: 5-10s
11) Torque: 30-60kg. Cm
12) Withstand Voltage: DC600V
13) Dimension: 100 x 90 x 70mm
Xide Innovation Technology (HK) Co., Ltd., is a modern scientific enterprise integrating researching and manufacture. Our parent company mainly manufacture hi-tech intelligent control products, including GSM intelligent alarm system, detector series, distribution box and high/low voltage switchgear and controlgear assemblies. Besides, our subsidiary company has more than 10 years experiences on plastic injection mold, and manufacture plastic shells for security products and electronics.
Our company always has been adhering to the motto of "Technology Keep Ahead". As we attach great importance to scientific research, keep forging ahead constantly and never stop making new products, we have made great achievements. Our company has dozens of patents, such as operative technology patent, invention patent and product design patent.
Our company possesses of some core management personnel with high-education and experienced technology group, and attract more and more excellent young personnel who are creative and dedicated. Looking forwards to the future, we save up strength to start out; Make an effort on changing traditional industrial structure; Venture into the world of high-tech and upgrade company core competence.
Excellent products quality is the key of the survival of enterprise, and good management service is the development foundation. Our company has passed ISO9001-2000 quality management system certification and gained CCC (National Compulsory Products Certification) certificates, which make our products under control. We stick to our motto: People foremost, innovation in science and technology, integrity and diligence, and keep improving. We will never overlook the services before, within and after our sale process. And we will pay great attention to our clients' suggestions and opinions. Customers satisfaction is our ultimate service goal.
XIDE INNOVATION TECHNOLOGY (HK)Co., Ltd will take scientific innovation and mechanism innovation as our driving power, and strive to realize the goal of becoming a modern hi-tech enterprise.
