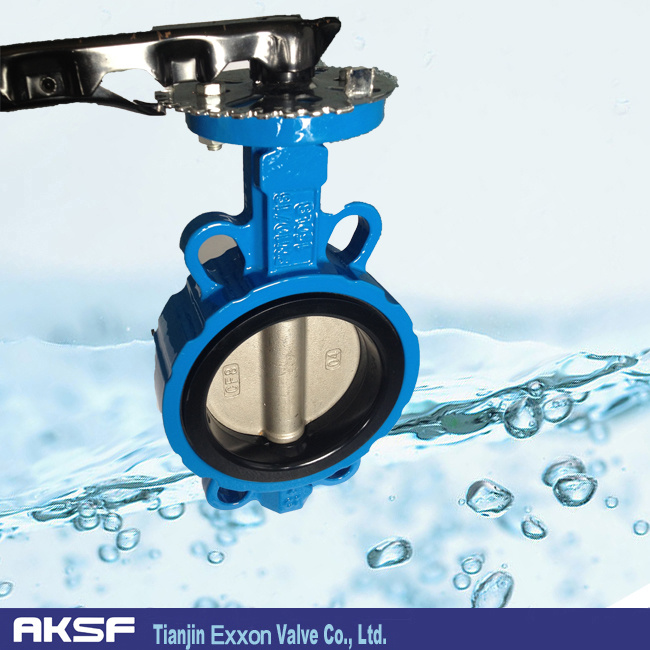

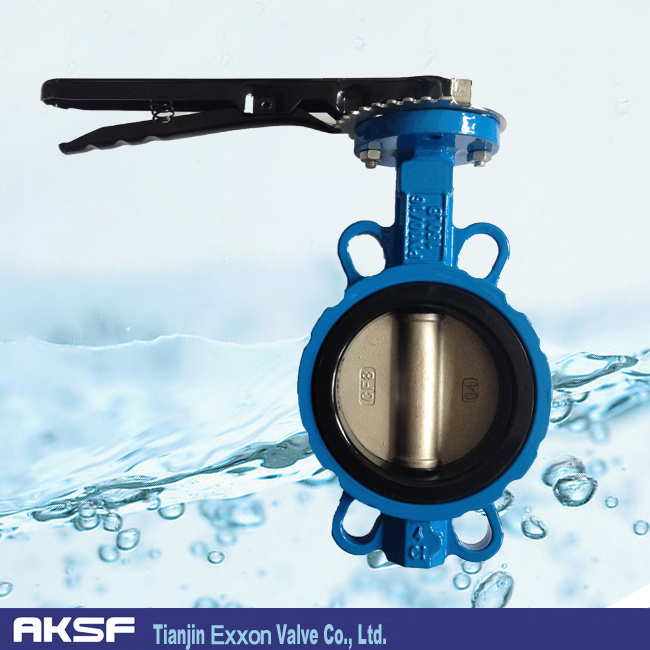

Wafer type butterfly valve
Description:
Working Pressure: 150LB
Body: Ductile Iron/Cast Iron
Disc: Ductile iron/SS304/SS316/SS316L etc.
Shaft: SS410, SS304, SS316, etc.
Seat; EPDM, NBR, PTFE, RPTFE, etc.
Opertaion: Lever/Gear/Actuator,etc,
Color: Red/bule/grey,tec,
Media: Petroleum, chemical, natural gas, food, water supply and other industrial areas.
Technical data:
Design:API 609\BS5155\EN593\GB/T12238\DIN3354
Face to Face:API609\ DIN3202 K1\BS5155\EN558\ISO5752\ASME B16.10
Flange End:ASME B16.1 CLASS 125\ASME B16.5 CLASS 150\ASME B16.47\BS EN 1092 PN6/PN10/PN16\JIS B 2220 5K/10K/16K\BS 10 Table D/Table E
Top Flange:ISO5211(According to customer's needs)
Inspection:API598\EN12266-1\ISO5208
Size Range:DN50-DN1600/2"-64"
Temperature:-40°C to +200°C (Depending on pressure, medium and material)
Medium:freshwater\ sewage\seawater\air\vapor\food\oils\medicine\ alcohol\salt
Features
-Simple and compact construction, quick 90 degree on-off operation, Minimized operating torque, energy saving.
-Bubbles-tight sealing with no leakage under the pressure test.
-The connection of driven part conforms to ISO 5211.
-Wide selection of materials, applicable for various medium.
-The valve body and disc are accurately machined which results in low operating torque and long service life and reliability.
-Can be disassembled, material-specific recycling possible.
-Can be installed at the end of pipe for lugged type butterfly valve.
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
