Manual Actuator Lug Type Butterfly Valve

Manual Actuator Lug Type Butterfly Valve
Price: US $ 10PC
Trade Terms: FOB,CFR,CIF
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P
Lug Type Butterfly Valve With Double Axis

1. Size: DN50-500;

2. Body: Cast iron/Ductile iron/Stainless steel;

3. Dise: Ductile iron/Stainless steel;

4. Tength more highly, seal more reliably for seat;

5. Easy and fast installation, making cost minimized.

Brief introduction of lug type butterflt valve with double axis

1. Lug type butterfly valve designed to comply with MSS-SP-67, BS 5155 and API609. Compatible with GB, DIN, BS, ANSI125/150 flanges. 2. Face to face according to ISO5752.

3. The seat of double axis butterfly valve is designed in to without back, the touque-and-groove seat is lower torque and replaceable.

4. There is O-ring casted on the seal surface of the seat, negates need for flange gaskets.

5. Available in wafer type and lug type.

6. Available with handles, manual gear operators and electric or pneumatic actuators.

More information about wafer type spline butterfly valve.

Our butterfly valve conform to the international standard like GB, ANSI/API, DIN, BS as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. Butterfly valves are widely sold in America, Germany, UK, Italy, Spin, Holland, Sweden, United Arab Emirates, Singapore etc.

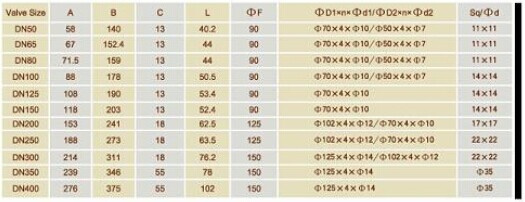

Detailed Description of butterfly valve
Series: Lug type butterfly valve with double axis
Design Standard: API609/ISO5752
Size: DN50-500
Flange: PN6, PN10, PN16, PN25, ANSI150, ANSI125, JIS 10K,
Face to face: ISO 5752
Body: Cast Iron/Ductile Iron/Stainless Steel
Disc: Ductile Iron/Ni-plated ductile iron/Stainless steel/Al-Bronze
Stem: Zinc Plated Steel/ Stainless Steel
Seat: EPDM/NBR/PTTE
Application: Petroleum, chemical industry, water and electricity, foodstuff, medicament, light textile, paper making, metallurgy etc.
Certification: ISO9001: 2008, CE, SGS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2"-24"
Work Pressure: Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface: Soft Sealed
Connection Form: Lug Support
Structure: Centre Sealing
Seal Form: Force Sealed
Working Temperature: Normal Temperature (',-40??C
Application: Household Usage
APC Industries, a leading manufacturer specialized in industrial valves and Marine valves. It was established in 1999. APC main products is butterfly valves for industry application ( wafer type butterfly valve, Lug type butterfly valve, Double flanged butterfly valve, rubber-coated butterfly valve), Double Eccentric Butterfly Valves and Tri-Eccentric butterfly valve for Marine application, and these High performance butterfly valve has gain the Monopoly in China. API Check valve, API Gate valve, API Ball valve for oil and gas application. Y-strainer, Electric Actuators and pipe fittings.

Now we have gained the ISO 9001: 2000 International Quality Systems, Europe's PED/ CE marked product, Germany' S Pressure Equipment Ordinance TRD100/WO, Norwegian DNV Classification Society Factory and many classification societies such as CCS, British LR Certificates, API 6D /607 Certificates, and FM/UL Certificates for fire fighting valves.

The company carries out the design, manufacture and testing of valves according to the international standards such as ANSI. DIN. BS, JIS.

Warmly welcome to visit our factory.
