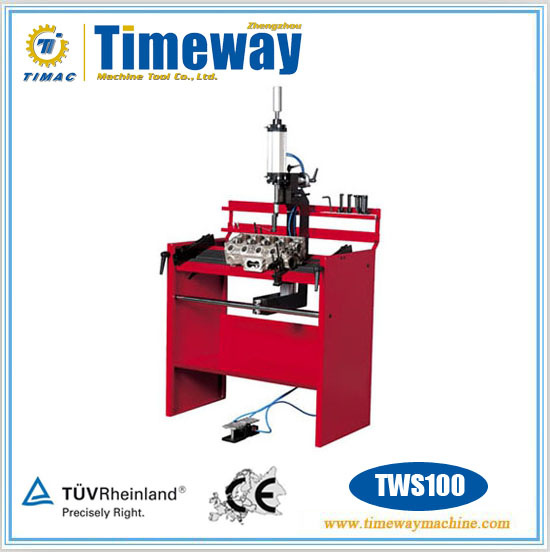

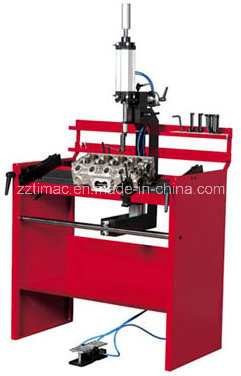

Universal Workstation (TWS00)
Part 1--- Product Description
Features:* The most universal work station with easy access to all faces of the cylinder head.
* Valve compressor lock for easy retainer removed "hand free".
* Access for camshaft setting and all other cylinder head operations
* Machine's Characteristics:
- Rapid, adjustable manual clamping systems
- 360°table adjustable
- Pneumatic foot control
- Variable speed regulation for air cylinder
- Air cylinder easily tilts to any valve angle and assembly slides from valve
- 5 sizes compressing feet
- Valve keeper installing tool
- Valve keeper retrieving tool
- Support to hold the valves with polyethylene plates
Parameter :| Machine capacities(max) |
|
| Length | 1125mm / 44.29" |
| Width | 390mm / 15.35" |
| Height | 240mm / 9.45" |
| Weight | 250kg / 5501bs |
| Space requirements |
|
| Length | 1260mm / 49.61" |
| Width | 650mm / 75.20" |
| Height | 1700mm / 66.93" |
| Net weight | 130kg / 2861bs |

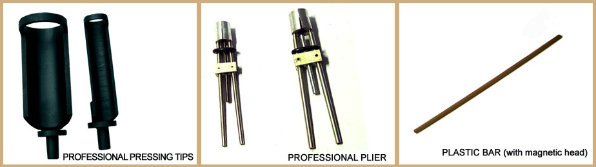

Standard Accessories:
Part 2---Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Part 3---FAQ
Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
Payment terms: T/T, L/C, Western Union payment terms is acceptable.
Delivery time: 60~90days....(vary as the machine's different size and complexible).
Warranty period: 12 months after delivery.
(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
