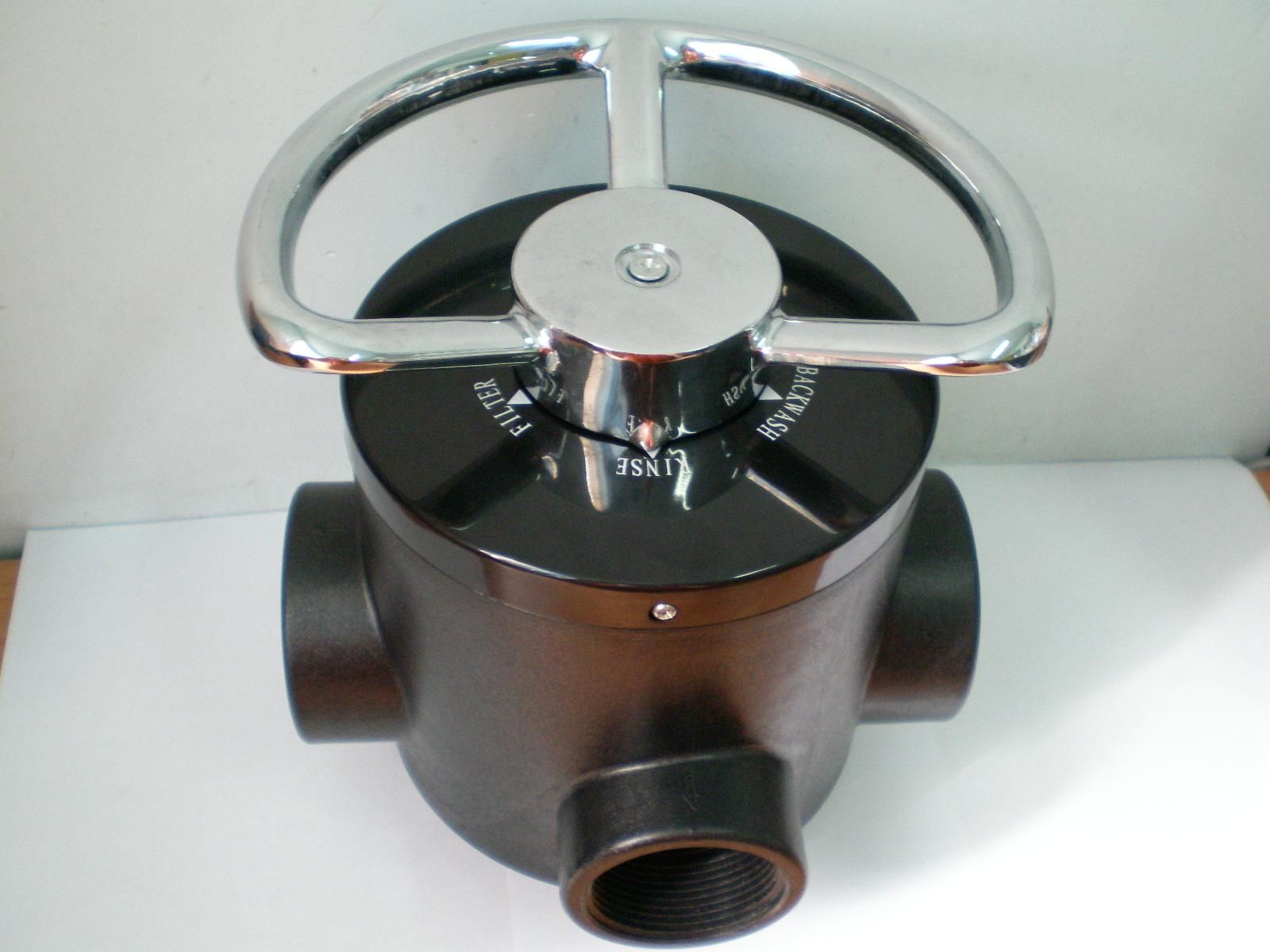

Control Mode---------------------------------------------------------------------Manual
Suited Pressure-----------------------------------------------------------------0.2_0.6MPa
Suited Water Temperature----------------------------------------------------5-45centigrade
Maximum Water Capacity-----------------------------------------------------10 m3/h
Inlet/Outlet--------------------------------------------------------------------------2"F(Female Thread)
Drain---------------------------------------------------------------------------------1.5"F(Female Thread)
Riser Pipe--------------------------------------------------------------------------1.5 "D-GB
Base----------------------------------------------------------------------------------4"-8UN
Feature:
Adopt the high degree pottery, seal slice with scuff resistance, corrosion proof,
Perfect sealing, and long time for using
Reasonable fluid design: Service_Backwash_Fast Rinse_Service
Small rotation angle for closing and opening, it feels well for operation
It could operate with pressure, no leakage
Application:
Household purifier system
Filter device of RO Pre-treatment
Swimming pool filter equipment
Iron and manganese removal
Shanghai AquaBetter Water Treatment Technology Co., Ltd. Has been a leading water treatment components supplier in China since 1997. A professionally, technologically integrated manufacturer and distributor, carrying out activities in the filed of water treatment. We have a 700m2 warehouse and more than 400 m2 office since 2004. Our stocked products include almost the whole pure water treatment area even like a small pressure gauge connector. We sell our products in both China and abroad. Now we are the main dealer of many water treatment components manufacturers like DOW, Hydranautics, CSM, GE Water, Fleck of Pentair, SEKO, ESPA, Purolite, Wave Cyber, China made Nanfang pump, etc. And we developed our own UPVC cartridge filter housings, stainless steel membrane housings, Aqua-Better FRP tanks and sea water pumps for RO systems, etc.
Our own products now in 2012 are as follows,
UPVC cartridge filter housings (5 filters in it, from 10 inches to 40 inches long)
UPVC cartridge filter housings (9 filters in it, from 10 inches to 40 inches long)
UPVC cartridge bag filter housings (one bag filter in it: 180X410mm, 180X820mm)
UV sterilizer using Philips lamp or USA made lamp
Stainless steel membrane housings (4 inch & 8 inch )
FRP tanks(high quality, PE liner, from 7*13-60*96)
Stainless steel sea water pumps (Q=15/25/35L per minute, H=Max. 150-120bar)
Famous Chinese made products (We are as the specified important dealer in China) now in 2012 are as follows,
Nanfang Pumps
Wave Cyber FRP pressure vessels & membrane housings
Purolite Resin
Runxin manual filter and softener valve using ceramic cores
Chinese made FRP pressure vessels
Fannico pressure switch
Zhengxin flow meter
Now we give our customers 12-pages Chinese version product list. If you need an English version product list or have any other questions, please do not hesitate to tell us from your e-mail. We shall help you meet what you want need from China in water treatment area.
