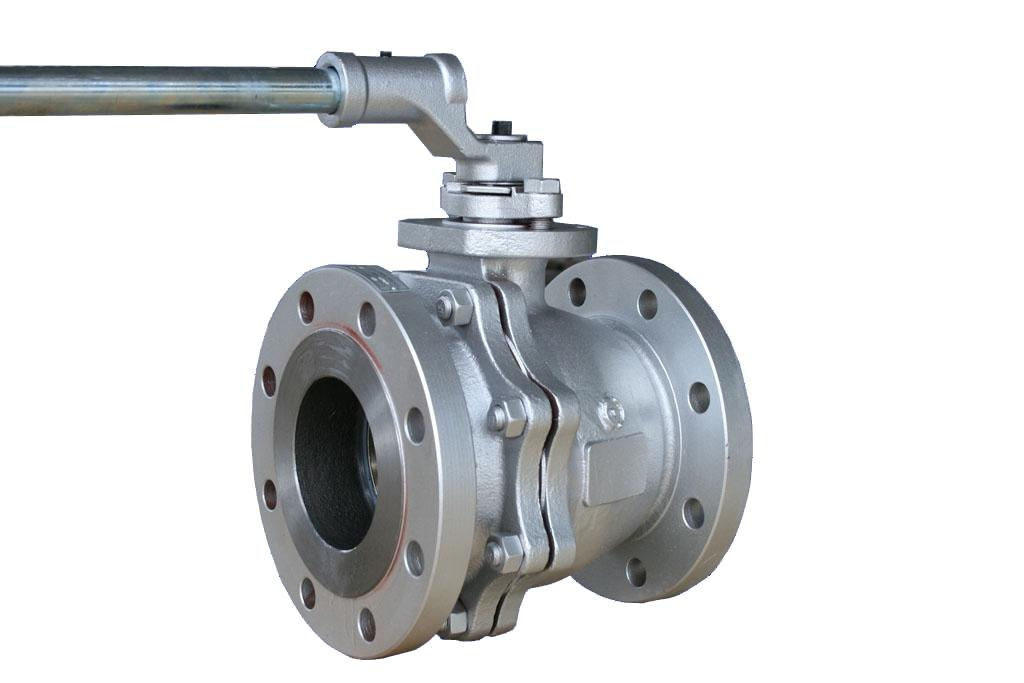

Ball Valves
Body and end cap quality investment casting Specification:
For general chemical service applications
Adjustable stem packing
Available in SS304&316 body construction
Designed for easy actuator mounting
100% tested air under water at 100psi, open and closed
Positions
Dimension: 1/4"-4"
Materials: SS304&316
Working pressure: 1000-2000W. O. G
Temperature range: -40 ~ 300
| Brass Valves |
| Model | 1.pc ball valve 2.pcs ball valve 3.mini ball valve |
| Joint method | (FF,MM,FM)Threaded,Butt-Welded,Clamped-Package,Flange ball valve |
| Surface | Nickel, Brass, Chrome |
| Size Range | 1/2"3/4",1",11/4",11/2",2",21/2",3",31/1",4"5",6" |
| Working pressure | Forged, Casting |
| Working Temperature | PTFE≤150°C PPL≤300°C Carbon Fibre≤350°C |
| Applicable Medium | Water/Oil/Gas |
| Bore/port | Standard Bore,Full Bore,Half Bore,Reducing Bore |
| Threaded | NPT,BSPT,DIN2999,DIN259, ISO228 |
| Material Speciafications |
| Body | Brass,Stainless Steel,Carbon Steel |
| Bonnet/cap | Brass |
| Ball | Brass |
| Ball seat | EPDM, PTFE |
| Thrust washer | PTFE |
| Stem | Steel, Brass |
| "O"Ring | PTFE |
| Handle/lever | Steel,Alloy,Carbon Steel, Iron,Stainless Steel |
| Handle/lever function | (Optional)Locking device handle |
| Handle/lever shape | Butterfly,Flat,Drawn |
| Handle/lever Cover | PTFE |
| Seal gasket | PTFE |
| Stem packing(up,middle,bottom) | PTFE |
| Screw/Blot | 304 |
| Nut | Iron,304 |
| stem washer | Brass |
| MM / FM Thread | Thread to ISO228/1, BSP, NPT, etc |
| Applications | Steam, air, gas and oil pipes or for many other fluids |
The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...
The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.
We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
