Specifications
Material:Cast iron/Cast steel/Stainless steel
Pressure:PN10/PN16/150LB
Size:DN15-DN250
Inner lining:FEP(F46)/PTFE(F4)/PFA/

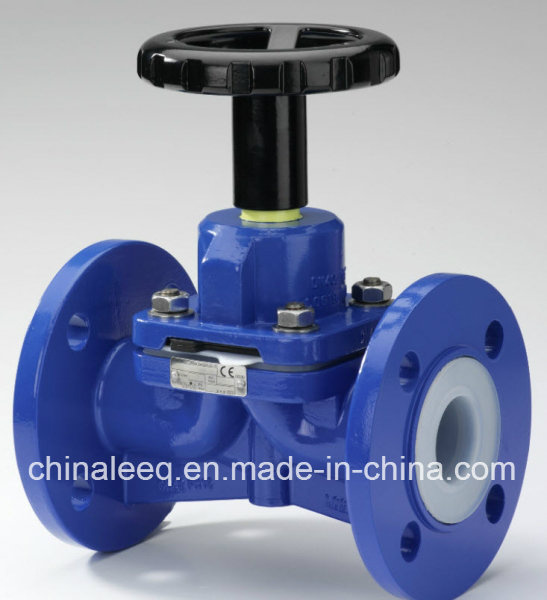

Teflon-lining Diaphragm ValveThis product lined with fluoroplastic,matched with novel structure within the large pressure difference and temperature variation range.This product can be acted as switchor adjustment to carry the liquids and gas (including the vapor) in various industrial pipes with strong corrosion such as acid, alkaline and salt.
Actuator:Hand actuator/Wormgear actuator/Electric actuator/Pneumatic actuator
APPLICATION AREAS IN INDUSTRIES: |
|
Where highly corrosive materials are used in any area of Chemical Process Industry. Provides improved operational safety for personnel, processes and plants when handling extremely hazardous materials. Where product purity is critical viz. Foods, Pharmaceuticals and Fine Chemicals. Where downtime, due to pipe replacement, needs to be avoided. Where environmental pollution is to be controlled. |
|
ADVANTAGES: |
Non-stick property Self sealing faces High resistance to Thermal/Mechanical shock Suitable for pressure and vacuum application Easy to install Has long life and Zero maintenance More economical than glass lined and special alloys Can be tailor made to suit customer requirements |
SPECIFICATION:
1)Size:1/2"-24"
2)Pressure:150lb-600lb
3)Standards:
Design & Manufacture: GB12239, BS5156
Face to Face Dimension: GB12221, BS5156,JB1688,ANSI B16.10,DIN 3202
Flange Dimension: GB4216, JB78/79,BS4504,DIN2532, JIS B2212, ANSI B16.1, ANSI B16.5
Inspect & Test: GB/T13927,API598,GB/T13927
4)Symbol:MSS SP-25,GB12220
5)Supply:API599,GB/T12252,BS 5156
Technique standard |
Design | GB/T 12235 |
Face to Face | GB/T 12221 HG/T 3704-2003 ASME B16.10 |
Flange dimension | HG20592-97 ANSI B16.5a |
Mode of driving | Hand,electrically-driven,air-operated |
Nominal Pressure | 0.6-2.5MPa/Class 150 |
Pressure test | GB/T 13927,API 1598 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main parts material specifications |
Name | Refined D.I | Cast steel | Stainless steel |
QT | C | P | R | RL | RL |
Body/Bonnet | QT400 | WCB | CF8 | CF8M | CF3 | CF3M |
Stem | 2Cr13 | 2Cr13 | CF8 | CF8M | CF3 | CF3M |
Inner lining | FEP(F46)/PTFE(F4)/PFA/PO/PE |
Daiphragm | FEP(F46)/CR/PFA/FPDM |
Disc | QT400 | WCB | CF8 | CF8M | CF3 | CF3M |
Bolt | 35 | 35 | SS316 | SS316 | SS302 | SS302 |
Nut | 45 | 45 | SS304 | SS304 | S304 | SS304 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main dimensions |
DN | L | D | D1 | D2 | f | b | Z-Φd | D0 | H |
15 | 125 | 95 | 65 | 45 | 3 | 15 | 4-14 | 120 | 120 |
20 | 135 | 105 | 75 | 55 | 3 | 17 | 4-14 | 120 | 120 |
25 | 145 | 115 | 85 | 65 | 3 | 17 | 4-14 | 160 | 130 |
32 | 160 | 140 | 100 | 75 | 3 | 19 | 4-18 | 160 | 135 |
40 | 180 | 150 | 110 | 85 | 3 | 19 | 4-18 | 180 | 160 |
50 | 210 | 165 | 125 | 100 | 3 | 21 | 4-18 | 200 | 165 |
65 | 250 | 185 | 145 | 120 | 3 | 21 | 4-18 | 250 | 200 |
80 | 300 | 200 | 160 | 135 | 3 | 22 | 8-18 | 280 | 220 |
100 | 350 | 220 | 180 | 155 | 3 | 23 | 8-18 | 300 | 275 |
125 | 400 | 250 | 210 | 185 | 4 | 24 | 8-18 | 320 | 335 |
150 | 460 | 285 | 240 | 210 | 4 | 26 | 8-23 | 350 | 380 |
200 | 570 | 340 | 295 | 265 | 4 | 26 | 12-23 | 450 | 500 |
250 | 680 | 405 | 355 | 320 | 4 | 28 | 12-26 | 500 | 575 |
