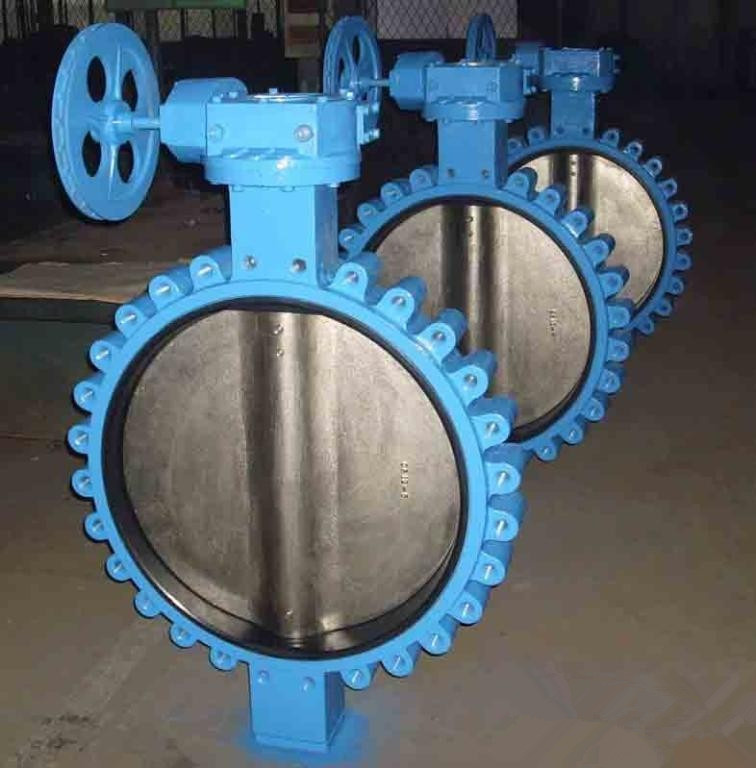

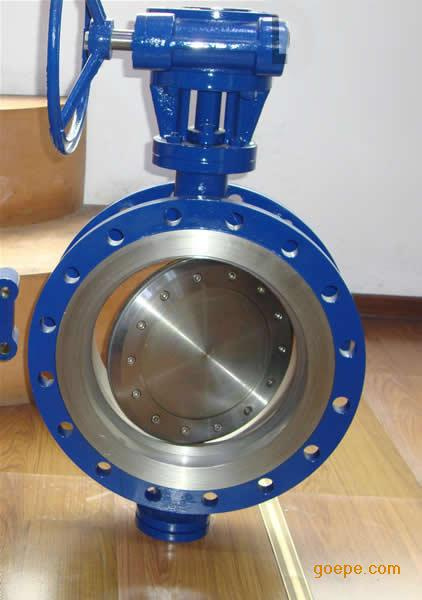

Manual Operation Ductile Iron Butterfly Valve

Name: Manual Operation Ductile Iron Butterfly Valve
Brand: Valve Industry
SKU: 687610952
Availability: InStock
Rating: 5 (27 reviews)

Price:	US $ 5-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Shandong King Metals Co., Ltd.

Showroom Product Company Profile

Feature

1. Long service life with reliable seal and without frequent main tenance

2. Pressure loss

Too much pressure loss will bring increased cost of correlative energy

Butterfly valve have flow characteristics three times better than globe valve,and about 75%

of a same size gate valve

3. Multi-Function

Butterfly valve can be used for on/off service and throttling,They are superior in Multi-function

as compared to gate or globe valves.Butterfly valve can be widely used in chemical field due

to trim options and choice of elastomeric liner.

4.Weight

Butterfly valve have feature of light in weight and small in size,for example, weight and size of

a 10'' butterfly valve are 1/9 and 1/6 of a 10'' gate valve.So butterfly valve is easy to install and

save cost of piping system.

5.Bubble Tight

Butterfly valve with resilient seat design can be bubble tight as compared to metal seated gate

or globe valves.

6.Easy of operation

Butterfly valve offer 90-degree open to close.

7. Butterfly valves is approximate 35-40% cost of a same size gate valve. Also low

installed cost than gate valve.

8.Maintenance

Properly installed butterfly valves are self cleaning and are less susceptible to failure due to

trash material in pipe.

9.Delivery Time:25 days after order conformed.

10.Standard: EN,MSS,API,AWWA,BS

11.Operation: level operation

12.Body:cast iron,stainless steel 304/316,aluminum bronze

13.Painting:PTFE coating,nylon painting

14.Stem:CS,SS416,SS410,SS304,SS431

15.Seat:NBR,EPDM,PTFE

16.Pressure:PN10,PN16

17.Size:2''-24''

18.Packaging:export poly wooden cases, or as per customers' requirements

19.Payment:by L/C,T/T and D/P

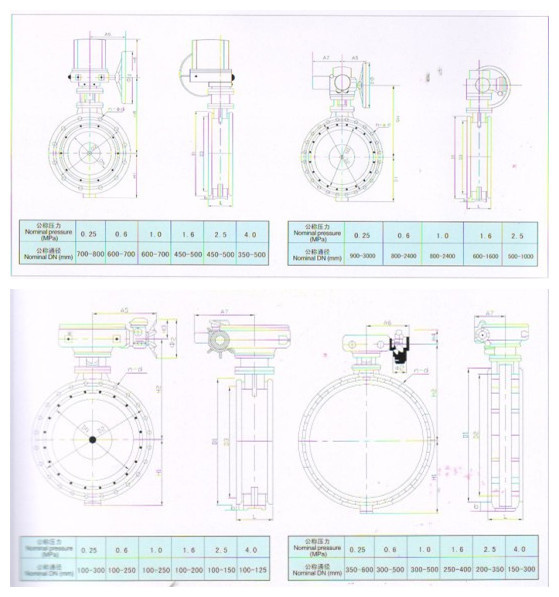

Connetcion dimension (0.6MPa)
DN	D1	D2	D3	L	b	n-Φd	H1	H2	H3	H4	H5	H6	A1	A2	A3	A4	A5	A6	A7	Φ1	Φ2
100	210	170	144	127	18	4-Φ18	120	220	158		255	190	138	50	150		126	168		130	200
125	240	200	174	140	20	8-Φ18	138	260	163		290	190	170	62	160		126	168		180	200
150	265	225	199	140	20	8-Φ18	150	275	163		305	190	170	62	160		126	250		180	200
200	320	280	254	152	22	8-Φ18	182	335	172		380	216	200	80	170	160	175	250		240	300
250	375	335	309	165	24	12-Φ18	210	365	172		410	216	200	80	170	160	175	250		240	300
300	440	395	363	178	24	12-Φ22	246	430	174		462	202	232	94	190	184	168	290		320	360
350	490	445	413	190	24	12-Φ22	271	460	174		492	202	232	94	190	184	168	290		320	360
400	540	495	463	216	26	16-Φ22	296	490	174		522	202	232	94	190	184	168	290		320	360
450	595	550	518	222	26	16-Φ22	330	560	188		576	202	276	132	230	232	168	290		420	360
500	645	600	568	229	28	20-Φ22	355	590	188		606	202	276	132	230	232	168	290		420	360
600	755	705	667	267	28	20-Φ26	420	690	200	205			425	185	275	295	460		410	420	360
700	860	810	772	292	28	24-Φ26	472	750	200	205			425	185	275	295	460		410	420	360
800	975	920	878	318	30	24-Φ30	536	850	215	260			480	234	320	354	610		305	540	320
900	1075	1020	978	330	30	24-Φ30	586	905	215	260			480	234	320	354	610		305	540	320
1000	1175	1120	1078	410	32	24-Φ30	646	1010	235	260			525	296	370	426	650		385	540	320
1200	1405	1340	1295	470	36	28-Φ30	760	1130	235	260			525	296	370	426	650		385	540	320
1400	1630	1560	1510	530	38	32-Φ33	889	1325	265	260			705	410	475	550	745		535	680	280
1600	1830	1760	1710	600	42	40-Φ36	989	1430	265	260			705	410	475	550	745		535	680	280
1800	2045	1970	1918	670	45	44-Φ39	1119	1635	295	260			850	506	570	666	820		660	680	280
2000	2265	2180	2125	760	48	48-Φ42	1229	1750	295	260			850	506	570	666	820		660	680	280
2200	2475	2390	2335	830	50	52-Φ42	1366	175	325	260			982	636	660	786	920		825	680	280
2400	2685	2600	2545	910	52	56-Φ42	1471	2085	325	260			982	636	660	786	920		825	680	280

Connetcion dimension (1.0MPa)
DN	D1	D2	D3	L	b	n-Φd	H1	H2	H3	H4	H5	H6	A1	A2	A3	A4	A5	A6	A7	Φ1	Φ2
100	220	180	156	127	22	8-Φ18	125	225	158		260	190	138	50	150		126	168		130	200
125	250	210	184	140	24	8-Φ18	143	265	163		295	190	170	62	160		126	168		180	200
150	285	240	211	140	24	8-Φ22	161	285	163		315	190	170	62	160		126	250		180	200
200	340	295	266	152	24	8-Φ22	192	345	172		390	216	200	80	170	160	175	250		240	300
250	395	350	319	165	26	12-Φ22	220	375	172		420	216	200	80	170	160	175	250		240	300
300	445	400	370	178	26	12-Φ22	249	430	174		462	202	232	94	190	184	168	290		320	360
350	505	460	429	190	28	16-Φ22	279	465	174		496	202	232	94	190	184	168	290		320	360
400	565	515	480	216	30	16-Φ26	315	540	188		556	202	232	132	190	184	168	290		320	360
450	615	565	530	222	32	20-Φ26	340	570	188		585	202	276	132	230	232	168	290		420	360
500	670	620	582	229	34	20-Φ26	367	605	188		622	202	276	132	230	232	168	290		420	360
600	780	725	682	267	36	20-Φ30	432	705	200	205			425	185	275	295	460		410	420	360
700	895	840	794	292	38	24-Φ30	490	765	200	205			425	185	275	295	460		410	420	360
800	1015	950	901	318	40	24-Φ33	555	870	215	260			480	234	320	354	610		305	540	320
900	1115	1050	1001	330	42	28-Φ33	606	925	215	260			480	234	320	354	610		305	540	320
1000	1230	1160	1112	410	44	28-Φ36	673	1035	235	260			525	296	370	426	650		385	540	320
1200	1450	1380	1328	470	48	32-Φ39	786	1115	235	260			525	296	370	426	650		385	540	320
1400	1675	1590	1530	530	52	36-Φ42	912	1350	265	260			705	410	475	550	745		535	680	280
1600	1715	1820	1750	600	56	40-Φ48	1032	1475	265	260			705	410	475	550	745		535	680	280
1800	2115	2020	1950	670	60	44-Φ48	1150	1670	295	260			850	506	530	666	820		660	680	280
2000	2325	2230	2150	760	60	48-Φ48	1259	1780	295	260			850	506	530	666	820		660	680	280
2200	2550	2440	2370	830	68	52-Φ56	1403	2015	325	260			982	636	660	786	920		825	680	280
2400	2760	2650	2570	910	72	56-Φ56	1508	2125	325	260			982	636	660	786	920		825	680	280

Prod Model:	SDCV090
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2''-24''
Work Pressure:	Low Pressure (',Pn<1.6mpa)
Material Of Seal Surface:	Soft Sealed
Connection Form:	Flange
Structure:	Centre Sealing
Seal Form:	Force Sealed
Working Temperature:	Normal Temperature (',-40??C
Application:	Household Usage
