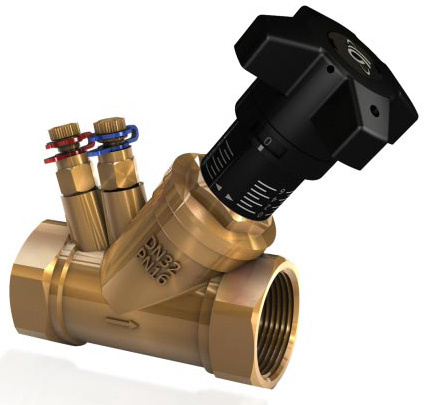

Manual Static Thread Balancing Valve PHF007A Application
Static balancing valve is a valve body with special function, it has good flow character, indication of valve
Aperture, aperture lock-in device and test hole for flow testing. Use specialized intelligent instruments, input
Valve model and aperture value, the flow of balancing valve can dispaly directly according to differential
Pressure signal.
BSB-PHF007 series static balancing valve is used for balancing hydraulic regime
In liquid pipe. It has excellent function of modulating, cutting off, aperture
Displaying and locking. It is able to save heat and electricity when used in
Heating and cooling system.
Caliber: DN20...DN50 (chilled/hot water)
Manual Static Thread Balancing Valve PHF007A Features
1. Ideal adjustment performance
2. Excellent cut-off function
4. Theory flow curve is equal-percentage curve
5. National patent type opening and closing lock-in device.
6. Every full circle has settled KV, flow through valve body can be calculated
Measuring differential pressure at both ends of valve body
7. Reliable sealing property.
8. Strong resistance to corrosion, long life time
9. Inner up-down valve stem, there is no need to preset operation room.
10. EPDM O-ring seal
11.45degree angle between the core, stem and the axis of the valve makes better flux.
12. Inside displacement of core. The position of stem and handwheel keep the same when opening or closing
The valve. It is suitable for small place.
Manual Static Thread Balancing Valve PHF007A Installation
1. Usually, balancing valve should be horizontal installation.
2. Check mark and nameplate of valve before installation, assure to use it
Correctly.
3. Every component in the valve is cured critically, no careless operation is
Allowed. Excessive external force to valve body is forbidden.
4. Remove all the packages before installation.
5. Never life the valve body with knob or valve shaft
6. Assure there is no sundries in system.
7. Pay attention to the direction on valve mark and flow direction.
