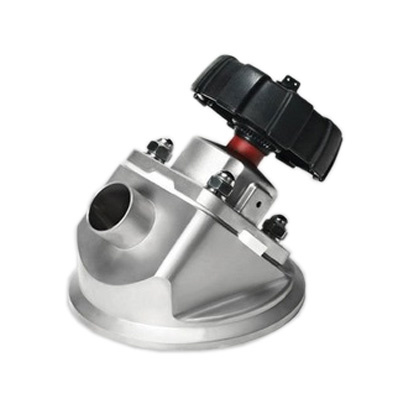

Manual Tank Bottom Diaphragm Valve Bottom Valve
1) Standard: 3A/BPE/DIN/ISO/IDF
2) Body material: Type AISI304, AISI304L, AISI316. AISI316L
3) Flux domination of pipeline: 3/4"-3" DN20-DN100
4) Seal material: PTFE+EPDM(Double Layer)/EPDM/Silicon/FPM(Vition)
5) Avaliably Structure: Straight, Tee, U-type, Tank Bottom
6) Handle: Plastic Hanlde
7) Handle opperation & pneumatic both ok.
8) Control: Smart Valve Positioner/C-Top Control/Position Sensor.
9) Suitable Media: Dairy, Food, Beverage, Pharmacy, Cosmetic, Chemical, etc
| Prdouct Name: | Manual Tank Bottom Diaphragm Valve-Bottom Valve |
| Valve Body Material: | SS304/SS316L 1.4404/1.4301 |
| Seal Material: | PTFE+EPDM(Double Layer)/EPDM/Silicon/Vition |
| Max Working Pressure: | 10Bar |
| Max Working Temperature: | 120 degree |
| Availably Size: | 1"-6" |
| Avaliably Connection: | Clamp/Weld/Male Thread |
| Availably Standard: | 3A/DIN/SMS/ISO |
| Certification: | ISO/CE |
| Availably Structure: | Straight ,Tee,U-type,Tank Bottom |
| Application Scope: | Dairy Food Beverage,Pharmacy,Cosmetic,Chemical etc. |
| Packing Details: | Bubble Pack for Each Valve, Outside Packing are carton or Plywood Cases |
| Delivery Details: | Usually within 20days after received T/T Down Payment |
| Payment Term: | T/T,L/C |
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
