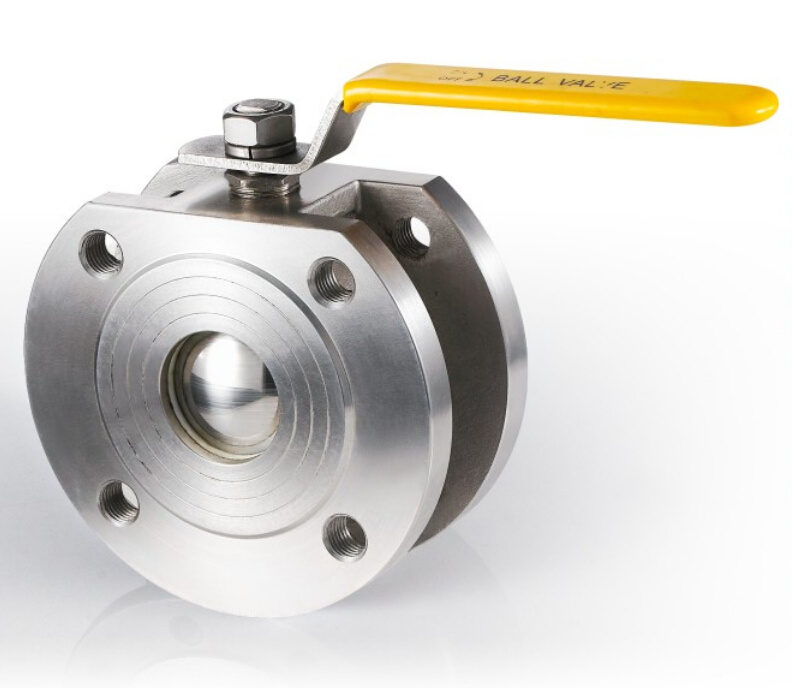

Model: Q71F/Y/PPL-PN16/25/40 ACH-Q41-167E-116 Material:WCB,CF8,CF8M,304,316 etc
High quality, reasonable price from factory

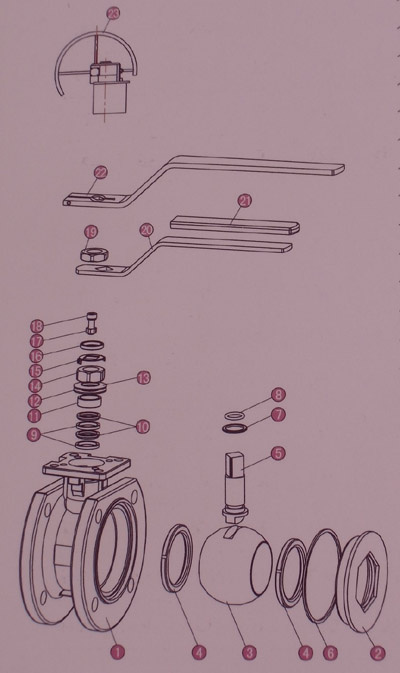

| NO | Part Name | Material |
| 1 | Body | CF8M | CF8 | WCB |
| 2 | Bonnet | CF8M | CF8 | WCB |
| 3 | Ball | CF8M | CF8 | CF8 |
| 4 | Ball Seat | PTFE | PTFE | PTFE |
| 5 | Stem | CF8M | CF8 | CF8 |
| 6 | Body Gasket | PTFE | PTFE | PTFE |
| 7 | Stem Gasket | PTFE | PTFE | PTFE |
| 8 | Concave V-type Ring | PTFE | PTFE | PTFE |
| 9 | Convex V-type Ring | PTFE | PTFE | PTFE |
| 10 | Gland Nut | 304 | 304 | 304 |
| 11 | Disc Spring | 304 | 304 | 304 |
| 12 | Positioning Bolt | 304 | 304 | 304 |
| 13 | Handle Nut | 304 | 304 | 304 |
| 14 | Handle | 304 | 304 | 304 |
| 15 | Handle sleeve | VINYL PLASTIC | VINYL PLASTIC | VINYL PLASTIC |
PN
(MPa) | DN(mm) | Size(mm) |

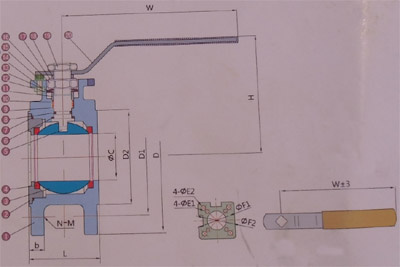

| 150LB | Size | ØC | L | D | D1 | D2 | b | Z*Ød | H | W |
| 1/2" | 15 | 32 | 89 | 60.5 | 35 | 14 | 4*Ø15 | 62 | 110 |
| 3/4" | 20 | 38.5 | 98 | 70 | 43 | 14 | 4*Ø15 | 70 | 125 |
| 1" | 25 | 45 | 108 | 79.5 | 51 | 16 | 4*Ø15 | 79 | 190 |
| 1-1/4" | 32 | 55 | 117 | 89 | 63.5 | 16 | 4*Ø15 | 86 | 220 |
| 1-1/2" | 40 | 62 | 127 | 98.5 | 73 | 18 | 4*Ø15 | 92 | 250 |
| 2" | 50 | 72 | 152 | 120.5 | 92 | 20 | 4*Ø19 | 102 | 265 |
| 2-1/2" | 65 | 95 | 178 | 139.5 | 105 | 22 | 4*Ø19 | 158 | 310 |
| 3" | 80 | 120 | 190 | 152.5 | 127 | 24 | 4*Ø19 | 172 | 315 |
| 4" | 100 | 145 | 229 | 190.5 | 157 | 24 | 8*Ø19 | 187 | 325 |
| 5" | 125 | 200 | 254 | 216 | 186 | 26 | 8*Ø22 | 200 | 650 |
| 6" | 150 | 225 | 279 | 241.5 | 216 | 26 | 8*Ø22 | 240 | 840 |
| 8" | 200 | 275 | 343 | 298.5 | 270 | 28 | 8*Ø22 | 278 | 1000 |
