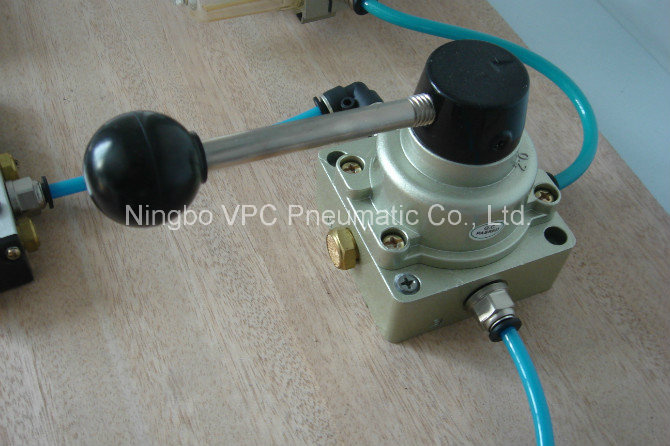

Manual operated control valve
Various working style and available
Black color is standard color, different color are optional

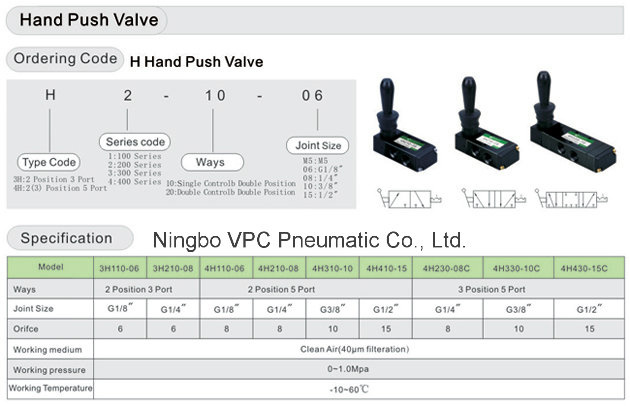

H series pneumatic manual operated control valve have 3/2, 5/2 and 5/3 types, thread size range from M5 to 1/2", controlled by manpower, center closed type is available, valve body size have many sizes, different superficial treatments are available, also the thread standards, such as G, NPT, PT etc
3H110-06
3H210-08
4H110-06
4H210-08
4H310-10
4H410-05
4H230C-08
4H330C-10
4H430C-15
They are used in pneumatic consoles upravleniya.- total angle of rotation of the handle 90 degrees - a fixed central position (4/3 - distributor) - a small force switching - compact size, light weight; - design for panel mounting.
We are manufacturer of pneumatic cylinder ,solenoid valves ,directional valve ,fittings ,metal fitting ,air filter ,air hose in China .
